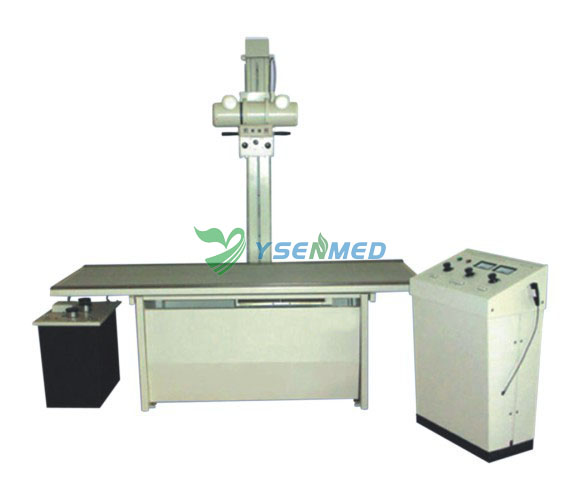

MAIN TECHNICAL INDEXES
| ITEM | CONTENTS | INDEX (YSX200) |
| Demand of power supply | Capacity | Two-phase 30KVA |
| Voltage Frequency | 380V/220V ±10%50HZ ±0.5Hz | |
| Intemal resistance | 0.75Ω(380V)0.25Ω(220V) | |
| power supply | Adjustable range | 380±10% at220V being adjustable continuously |
| Radiograph | Voltage | 50-100KV being adjustable continuously |
| current | Small focus:50mA100mA, Big focus:50Ma 100mA 200mA 300mA | |
| time | 0.04~6.35s 23grades together grading a according to R10 coefficient | |
| High-voltage generator | Capacity | 20KVA(instantaneous) |
| Max DC output voltage | 100KV | |
| Max DC output current | 200mA | |
| X-Ray tube | Model | XD51.20-40/100 |
| Focus | Small focus 1×1mm big focus2×2mm | |
| Radiographic table | Length*width*height of bed surface | 2000mm×665mm700mm |
| Moving range of bed surface | 640mmin Length,200mmin breadth | |
| Ray-filter of table | Travel in length ≥500mm | |
| Grid density N=28 | ||
| Convergence distance f。=100cm | ||
| Grid ratio r=8 | ||
| Column of X-ray tube unit | Moving Longitudinally along Radiographic table | 1000mmor 1800mm |
| Distance to friend as moving up and down (along column) | 650~1800mm | |
| Rotary around the center of cross arm | ±180° | |
| Rotary around the shaft line of X-ray annular tubes | -10°~60°~ +120° | |
| Max size of cassette | 356mm×432mm(14×17) | |
