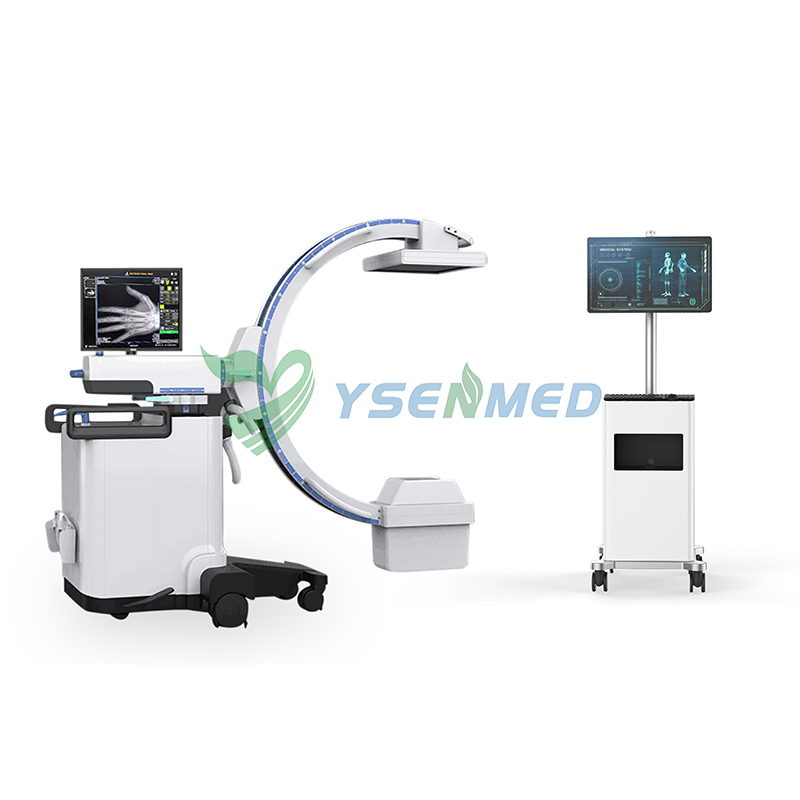

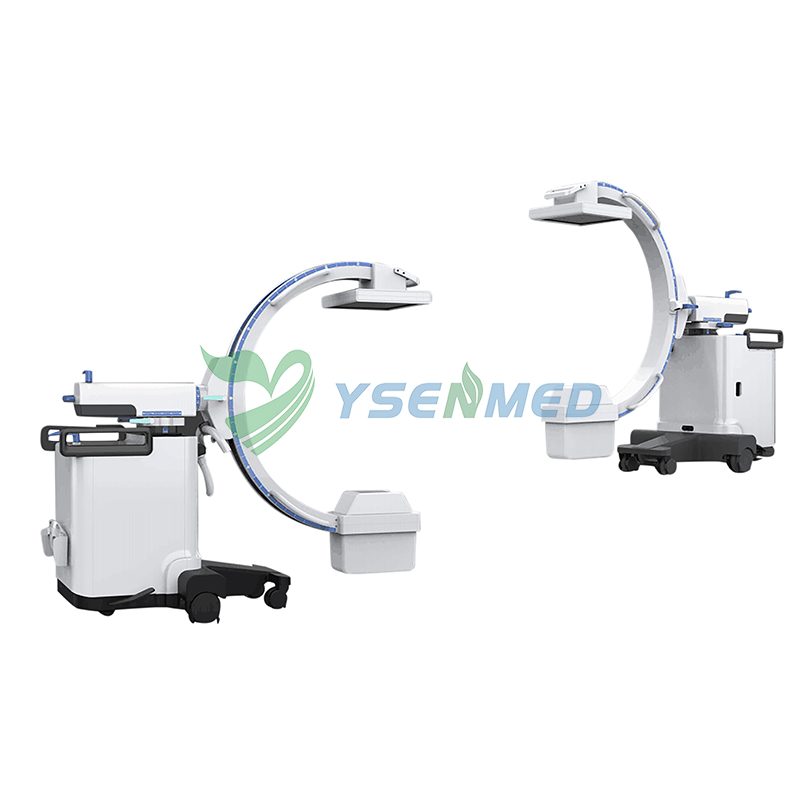

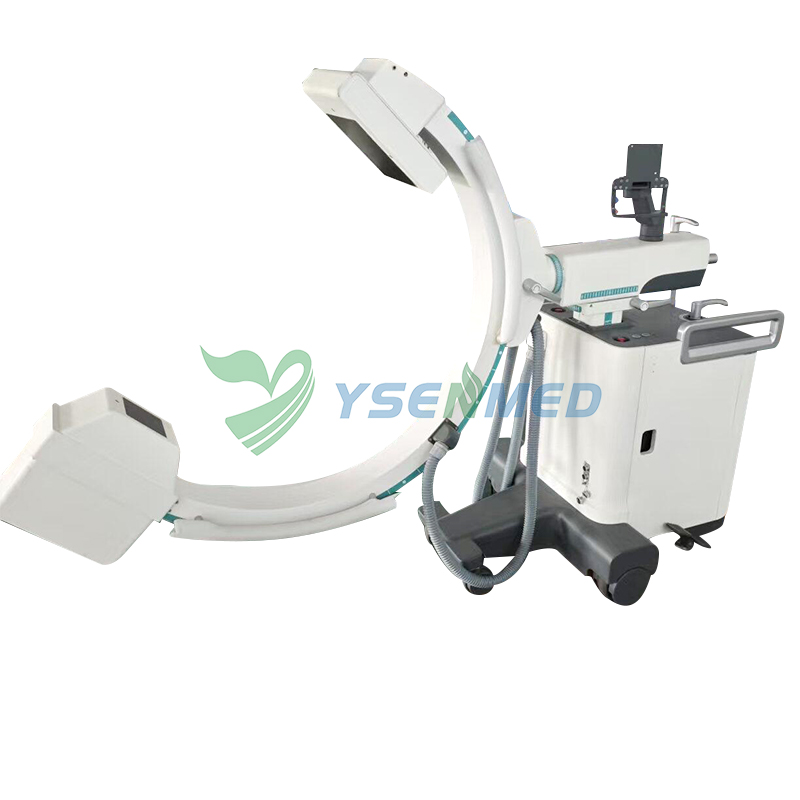

5kW FPD Digital C-arm X-ray System YSX-C605A

Model: YSX-C605A
  • ModelYSX-C605A
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou,China
  • ShippingAir/Sea
  • -
    +
    Categories:C-arm X-ray Machine
    Share:
    Description Get Price Review
    5kW FPD Digital C-arm X-ray System
    Model:YSX-C605A
    Power
    Electric power: 110VAC/220VAC
    Max. Output power: 5kW
    Detector
    Detector size: Mercu 0909F (iRay)
    Resolution: 2.5lp/mm
    Actie Matrix: 1024 x 1024 pixels
    Pixel pitch: 205μm
    Removable grid: Yes
    Active area: 210 x210mm
    Interface: 1G Ethernet
    Generator
    KV range: Spot / Pulse 40~125kV
    Continuity 40~110Kv
    mA range: Continuous: 6.3mA
    Pulsed: 32mA
    Digital spot: 100mA
    ms range: 10~1600ms
    mAs range: 0.2~100mAs
    X-ray Tube
    Type: Rotating
    Focal spots: 0.3/0.6mm
    C-arm
    SID: 1000mm
    Free space in arc: 784mm
    Depth in arc: 640mm
    Orbital rotation: 150° (117°/-33°)
    Lateral rotation: 360° (±180°)
    Wig/wag: ±15°
    Horizontal travel: 200mm
    Vertical travel: 400mm
    Monitor
    15.6” monitor on the main unit

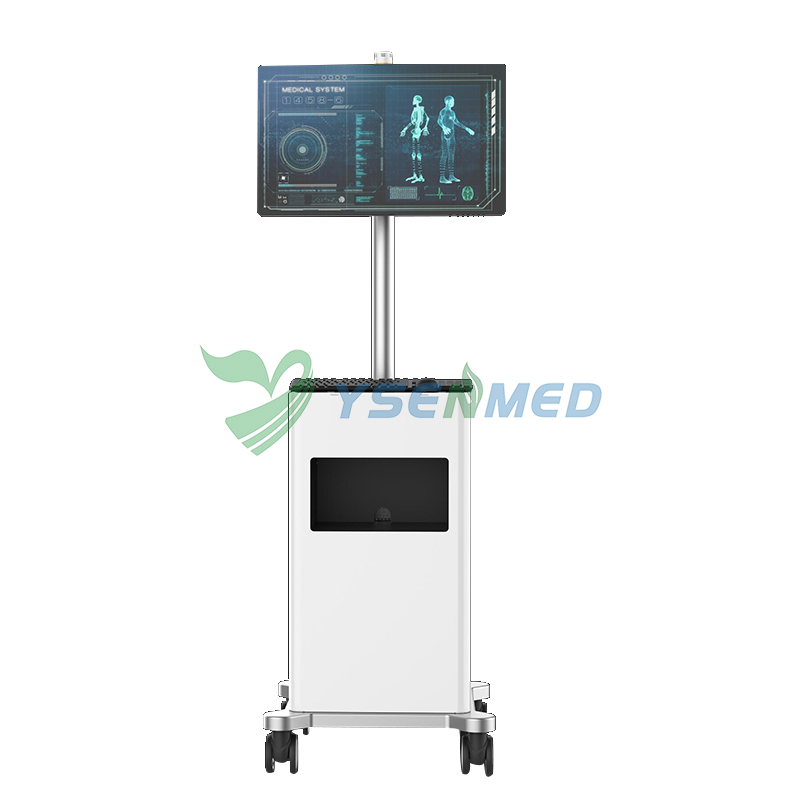

    24” monitor on the trolley
