80kW 1000mA electric motorized double column digital x-ray system YSX-iDR80D

Model: YSX-iDR80D
  • ModelYSX-iDR80D
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou,China
  • ShippingAir/Sea
  • -
    +
    Categories:Digital X-ray Machine
    Share:
    Description Get Price Review

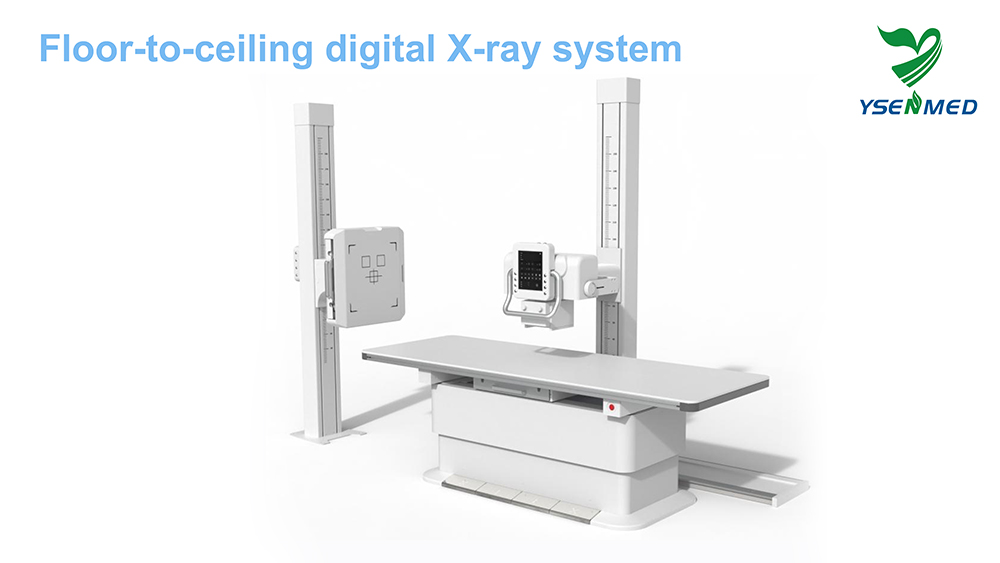

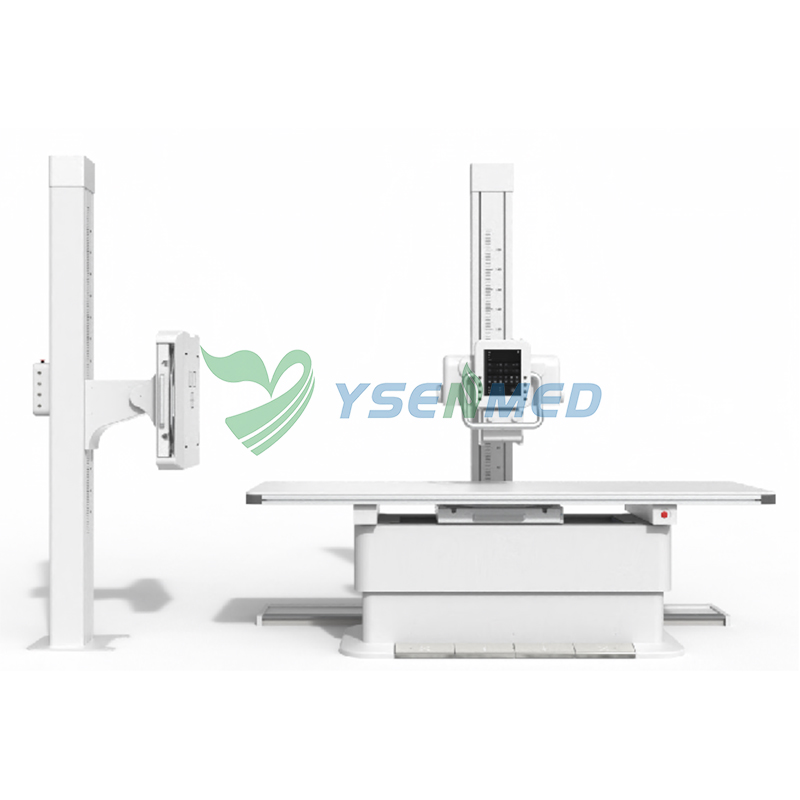

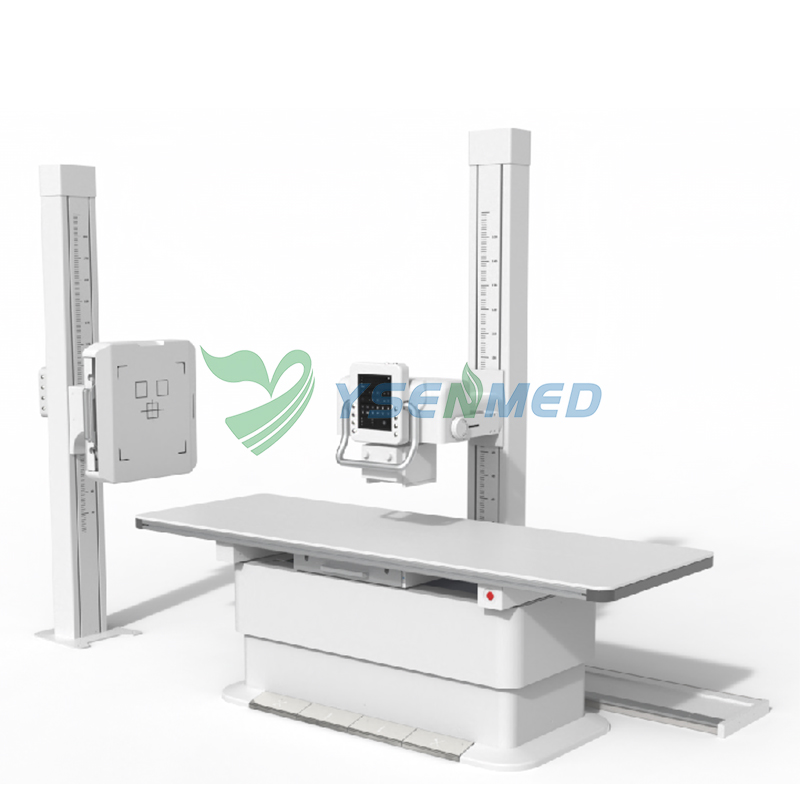

    80kW 1000mA electric motorized double column digital x-ray system
    Model:YSX-iDR80D

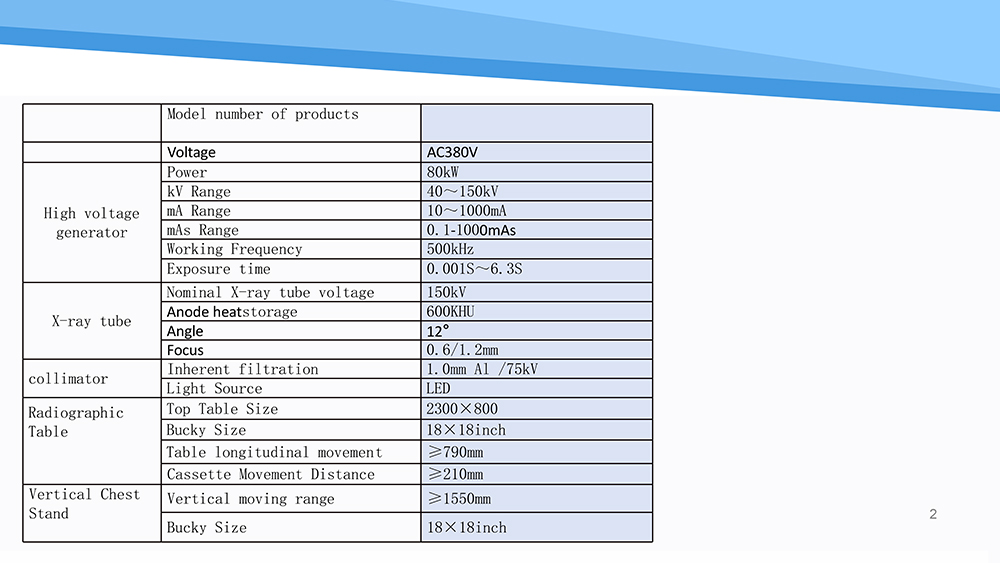

    Parameters
    High voltage generator Power 80kW
    kV Range 40~150kV
    mA Range 10~1000mA
    mAs Range 0.1-1000mAs
    Working Frequency 500kHz
    Exposure time 0.001S~6.3S
    X-ray tube Nominal X-ray tube voltage 150kV
    Anode heatstorage 600KHU
    Angle 12°
    Focus 0.6/1.2mm
    Collimator Inherent filtration 1.0mm Al /75kV
    Light Source LED
    Radiographic Table Top Table Size 2300×800
    Bucky Size 18×18inch
    Table longitudinal movement ≥790mm
    Cassette Movement Distance ≥210mm
    Vertical Chest Stand Vertical moving range ≥1550mm
    Bucky Size 18×18inch

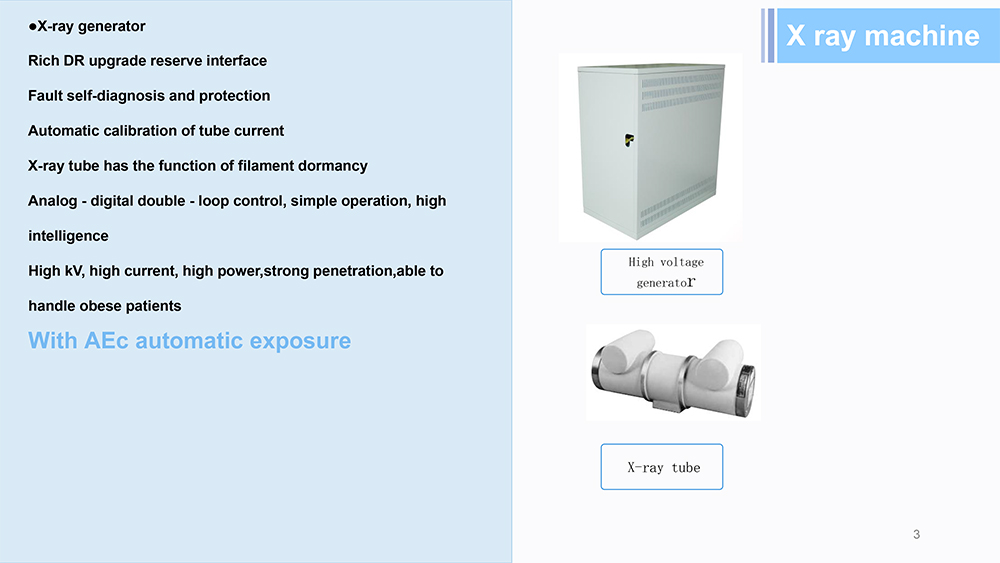

    X-ray generator
    Rich DR upgrade reserve interface
    Fault self-diagnosis and protection
    Automatic calibration of tube current
    X-ray tube has the function of filament dormancy
    Analog - digital double - loop control, simple operation, high intelligence
    High kV, high current, high power,strong penetration,able to handle obese patients
    X-ray tube and BUCKY automatic tracking

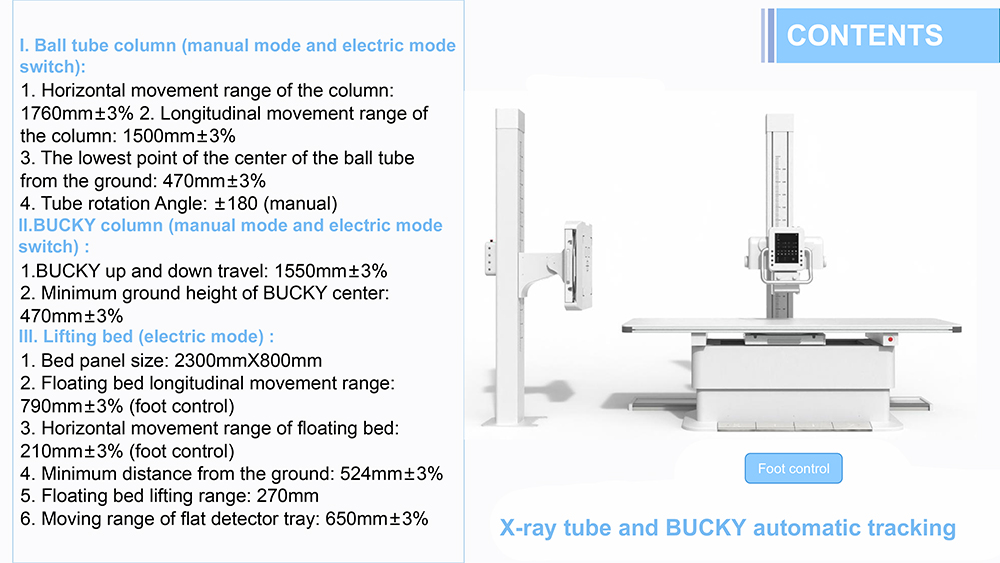

    Ball tube column (manual mode and electric mode switch)
    Horizontal movement range of the column: 1760mm±3%
    Longitudinal movement range of the column: 1500mm±3%
    The lowest point of the center of the ball tube from the ground: 470mm±3%
    Tube rotation Angle: ±180 (manual)
    BUCKY column (manual mode and electric mode switch)
    BUCKY up and down travel: 1550mm±3%
    Minimum ground height of BUCKY center: 470mm±3%
    Lifting bed (electric mode)
    Bed panel size: 2300mmX800mm
    Floating bed longitudinal movement range: 790mm±3% (foot control)
    Horizontal movement range of floating bed: 210mm±3% (foot control)
    Minimum distance from the ground: 524mm±3%
    Floating bed lifting range: 270mm
    Moving range of flat detector tray: 650mm±3%

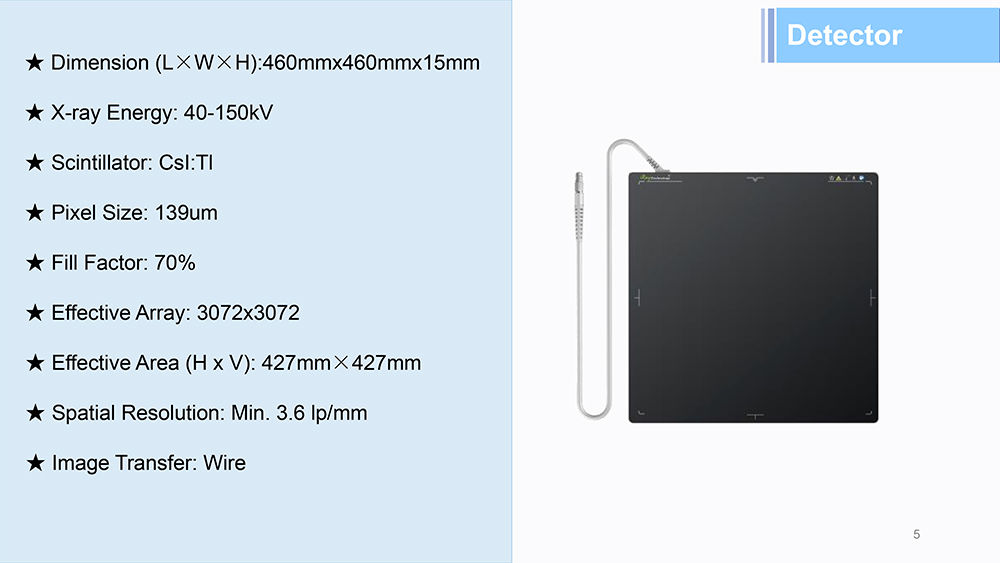

    Detector
    Dimension (L×W×H):460mmx460mmx15mm
    X-ray Energy: 40-150kV
    Scintillator: CsI:Tl
    Pixel Size: 139um
    Fill Factor: 70%
    Effective Array: 3072x3072
    Effective Area (H x V): 427mm×427mm
    Spatial Resolution: Min. 3.6 lp/mm
    Image Transfer: Wire

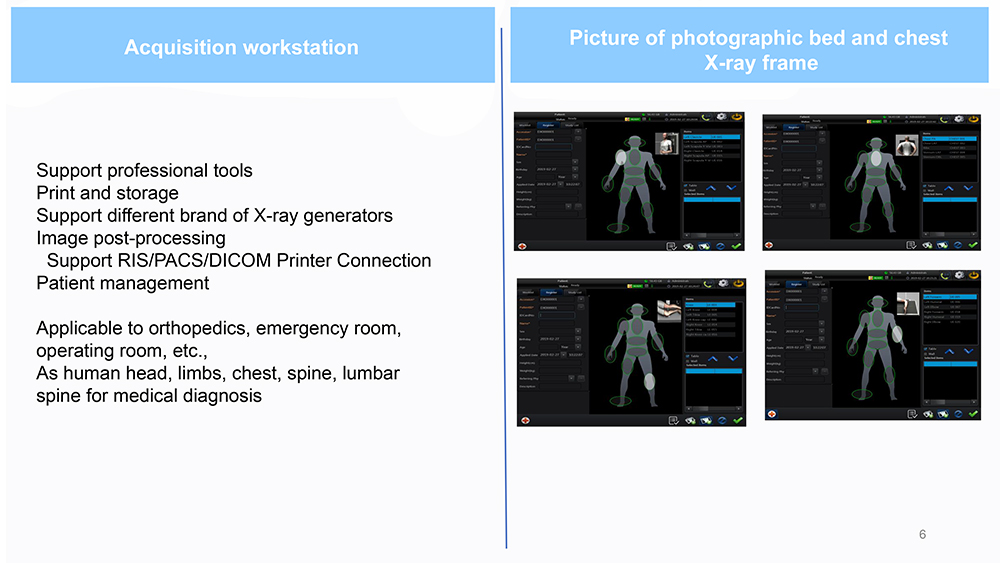

    Acquisition workstation
    Support professional tools
    Print and storage
    Support different brand of X-ray generators
    Image post-processing
    Support RIS/PACS/DICOM Printer Connection
    Patient management

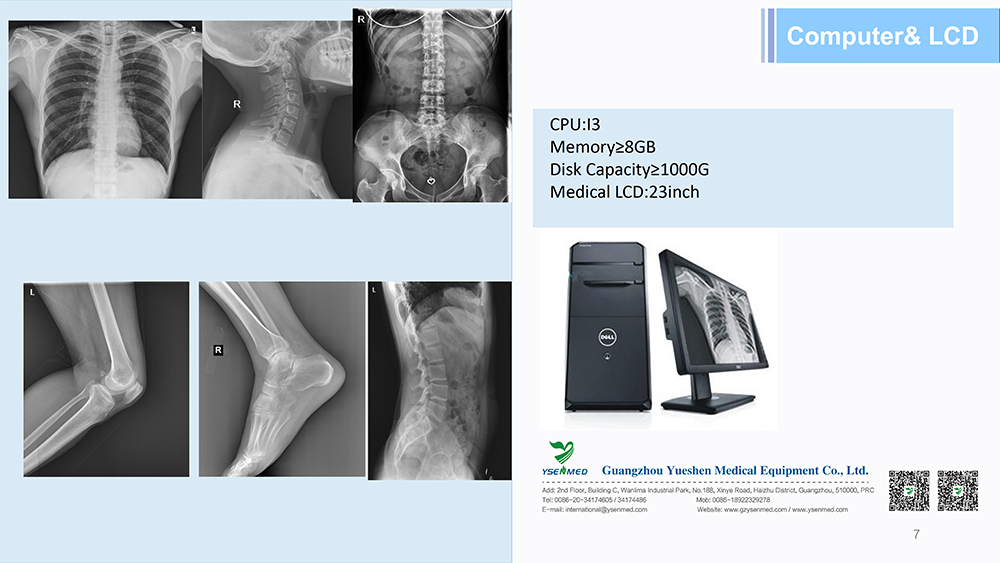

    Computer& LCD
    CPU: I3
    Memory: ≥8GB
    Disk Capacity: ≥1000G
    Medical LCD: 23 inch
