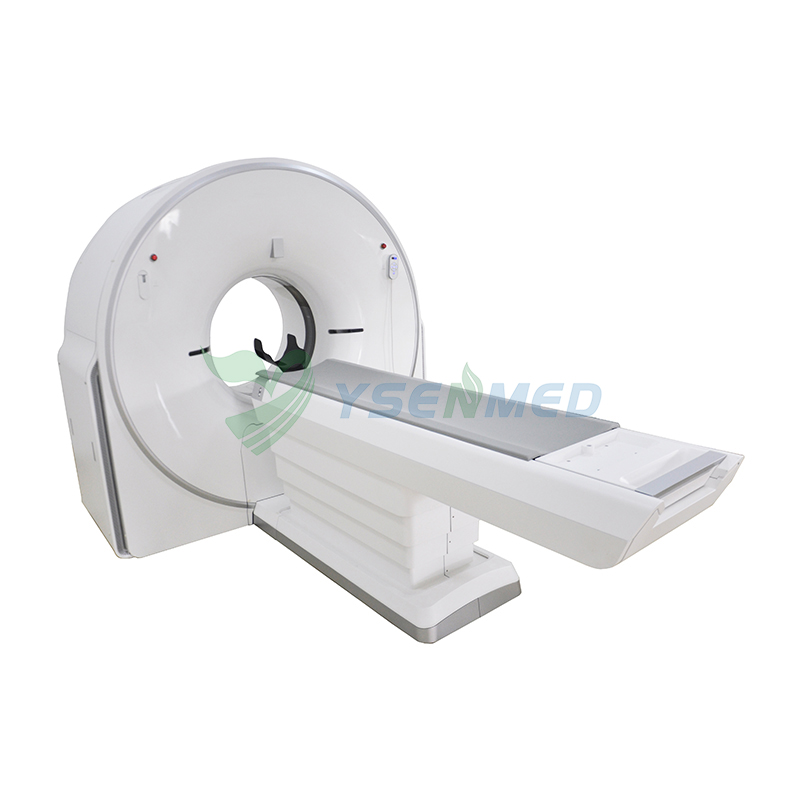

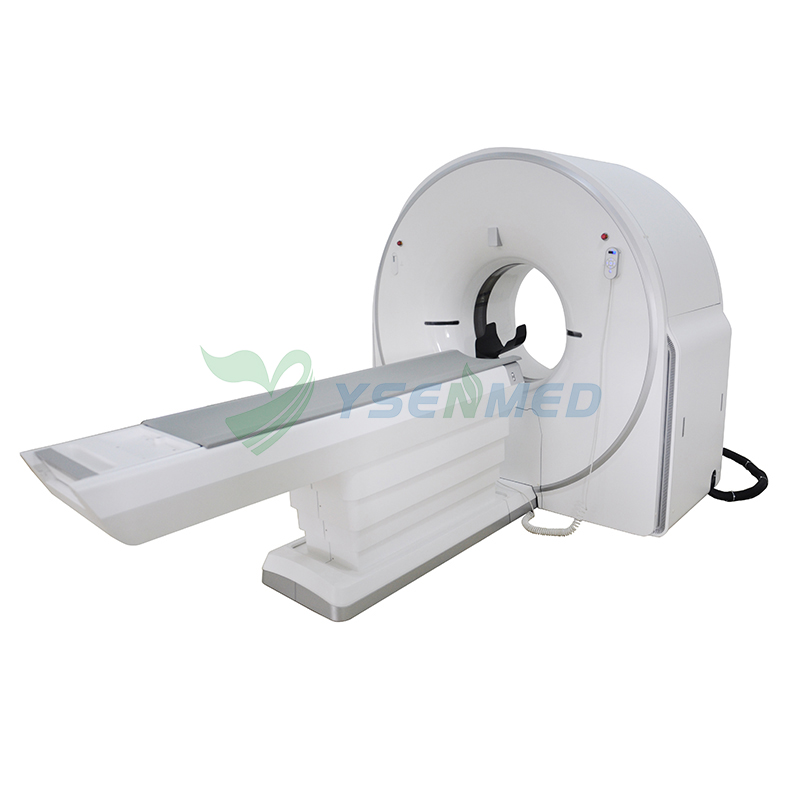

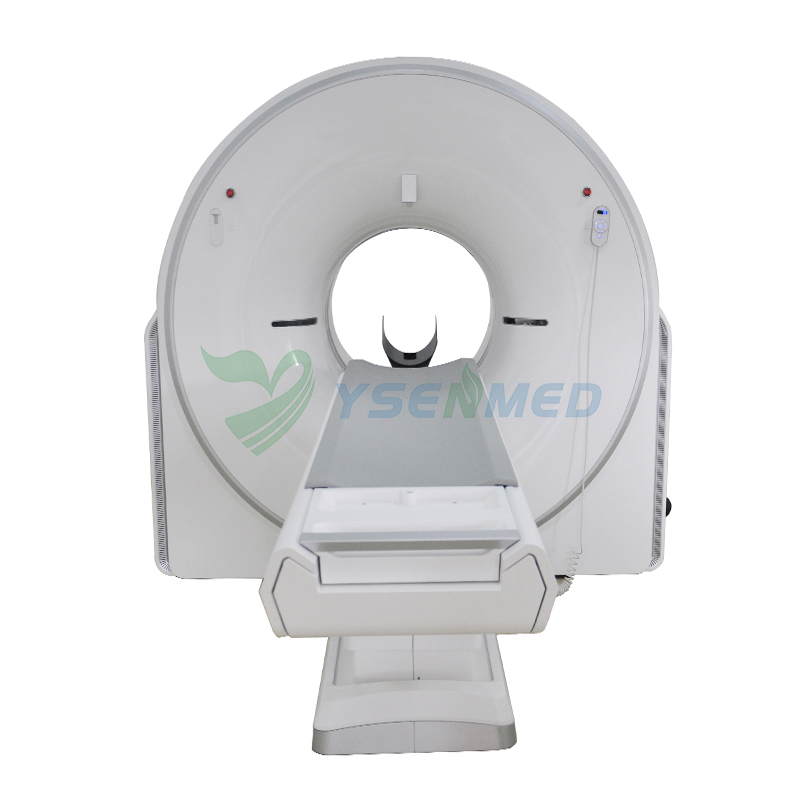

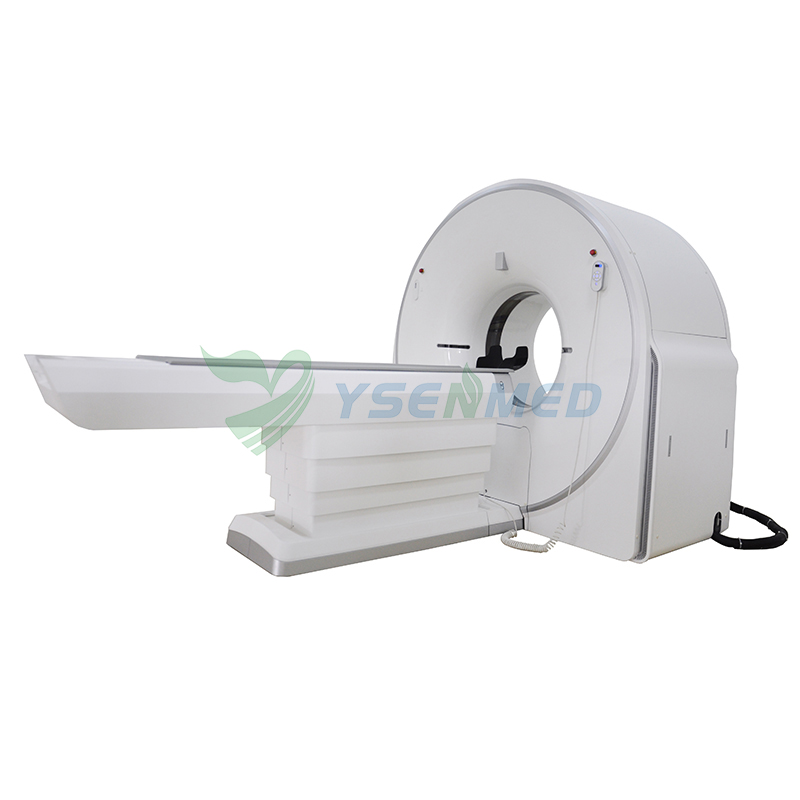

    CT/X-ray Computed Tomography Equipment
    Model:YSCT-32D
    Parameters
    Part name Model Specifications

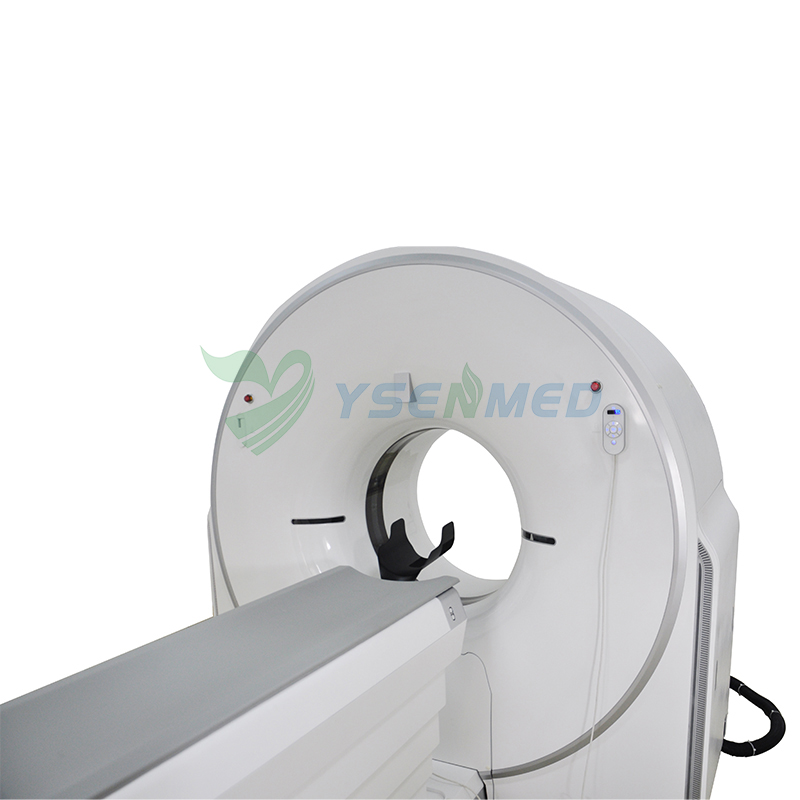

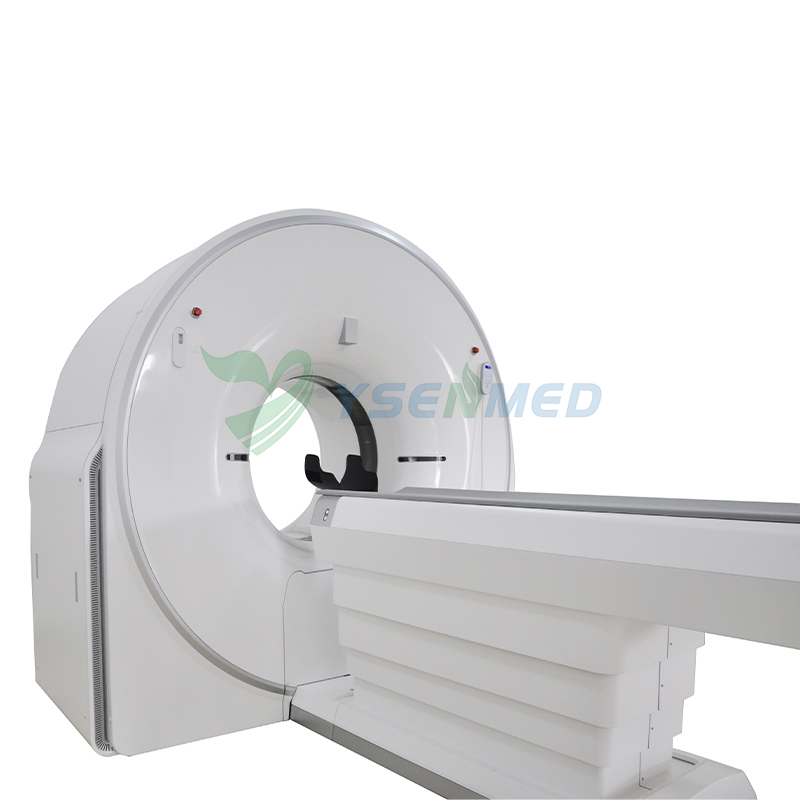

    Scanning frame SM100 Scanning frame aperture: 700mm±10mm
    Scanning frame rotation speed: 0.75s, 1.0s, 1.5s, 2.0s
    Scanning field of view: 430mm
    Type of Slip ring: contact slip ring
    High voltage generator CT70PN32X5610 Tube voltage setting: 70~140kV
    Tube current range: 10~300mA
    Nominal output power: 32kW
    Collimator CMT-003 Half value layer:≥4.6mmAl
    Equivalent aluminum equivalent thickness:2.3mmAl
    X-ray tube sleeve B-240H Nominal tube voltage: 140kV
    Nominal anode input power: 29kW/48kW
    Maximum continuous heat dissipation of anode: 3.5kW
    Focus size:
    0.7mm ×0.8mm
    1.2mm ×1.4mm
    Anode rotation speed: 60Hz/180Hz
    Diameter of anode target surface (mm): 140mm
    Target angle: 7°
    Anode type: rotating anode
    Bearing type: mechanical bearing
    Quantity (pcs): 1
    Fly focus (x to z offset): none
    The longest spiral scanning time: 100s
    Anode heat capacity:3.5MHU
    X-ray tube GS-30722
    Detector DET-003 Scintillation crystal material: GOS crystal
    Pixel matrix: 704×16
    Number of detectors: 11
    Coverage (projected to the center of rotation): 430mm
    Pixel size (projected to the center of rotation) 1.25mm × 1.25mm
    Scanning angle: 0°/90°
    Scanning field of view: 430mm
    Axial scanning layer thickness: 1.25 mm ± 0.625 mm, 2.50 mm ± 1.0 mm, 5.00 mm ± 1.0 mm, 10.0 mm ± 1.0 mm;
    Spiral scanning layer thickness: 1.25 mm ± 0.625 mm, 2.50 mm ± 1.0 mm, 3.75 mm ± 1.0 mm, 5.00 mm ± 1.0 mm, 7.50 mm ± 1.0 mm, 10.0 mm ± 1.0 mm;
    Collimation combination: 16×1.25, 4×1.25;
    Diagnostic bed ZC300 Z-axis positioning accuracy (mm): ≤±1mm
    Speed: 0~150mm/s
    Vertical lifting range: ≥440mm
    Maximum load: 205kg
    Laser M63AXSAXX-XX Category: 2 types
    Positioning accuracy: ±1mm
    Wavelength: 600~700nm
    Maximum output power: <1mW
    Console
    CZ100 KH100 Control box:
    Exposure control
    Bed motion control
    Intercom function
    / Computer
    The minimum configuration requirements are as follows
    CPU performance: the main frequency is not less than 2 GHz, the number of cores is not less than 2 cores
    Memory size: no less than 8GB
    Image storage capacity: no less than 850GB
    / Monitor
    The minimum configuration requirements are as follows
    Screen resolution: 1920×1200 SXGA
    Number of displays size: 1*24 inches
    Type: LCD, color
    Contrast ratio: 1000:1
    Preview
    Computer image processing software ScintVue Release version: 1.0
    The X-ray source assembly rotates 360°, and the maximum number of scan layers that can be obtained in a single axial scan is 32.
    Maximum scanning range: 1200mm
    Pitch coefficient: 0.25, 0.5, 0.75, 1, 1.25, 1.5, 1.75
    Scan mode: positioning scan, tomographic scan, spiral scan, enhanced scan, perfusion scan
    Software function
    Patient file management
    Patient registration
    Scan function
    reconstruction
    2D image browsing and processing
    3D image browsing and processing
    Film printing
    Data management function
