Dual-Probes Multipurpose Ultrasound Phased+Linear Probe YSB-C10XL

Model: YSB-C10XL
  • ModelYSB-C10XL
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou,China
  • ShippingAir/Sea
  • -
    +
    Categories:Wireless & USB Ultrasound Probe
    Share:
    Description Get Price Review

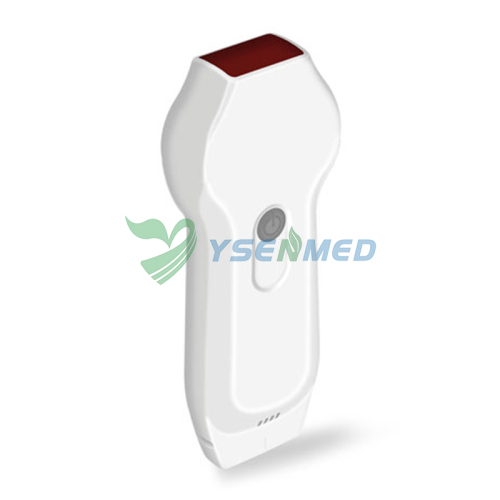

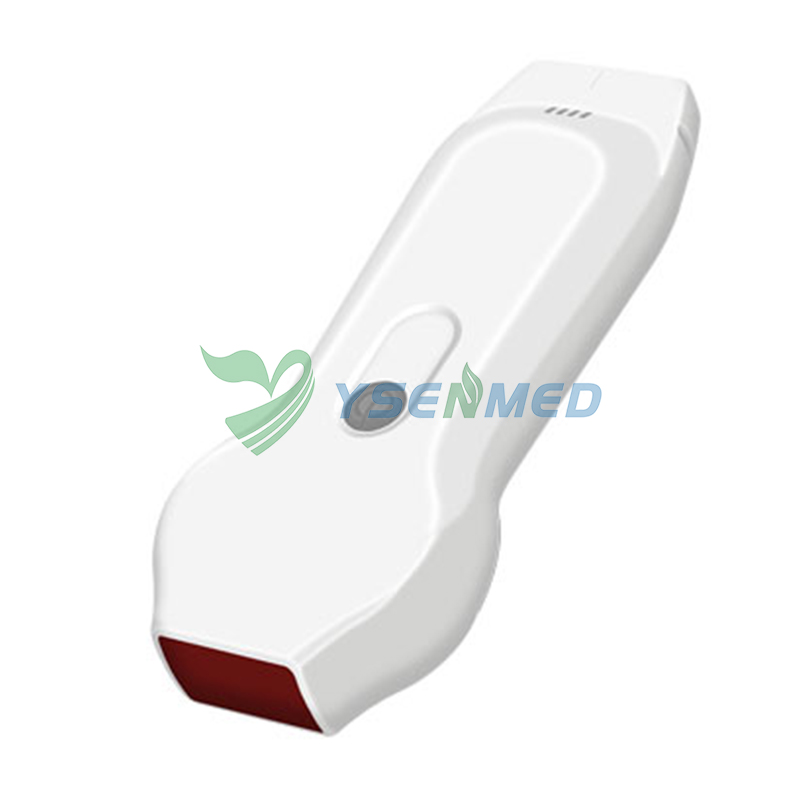

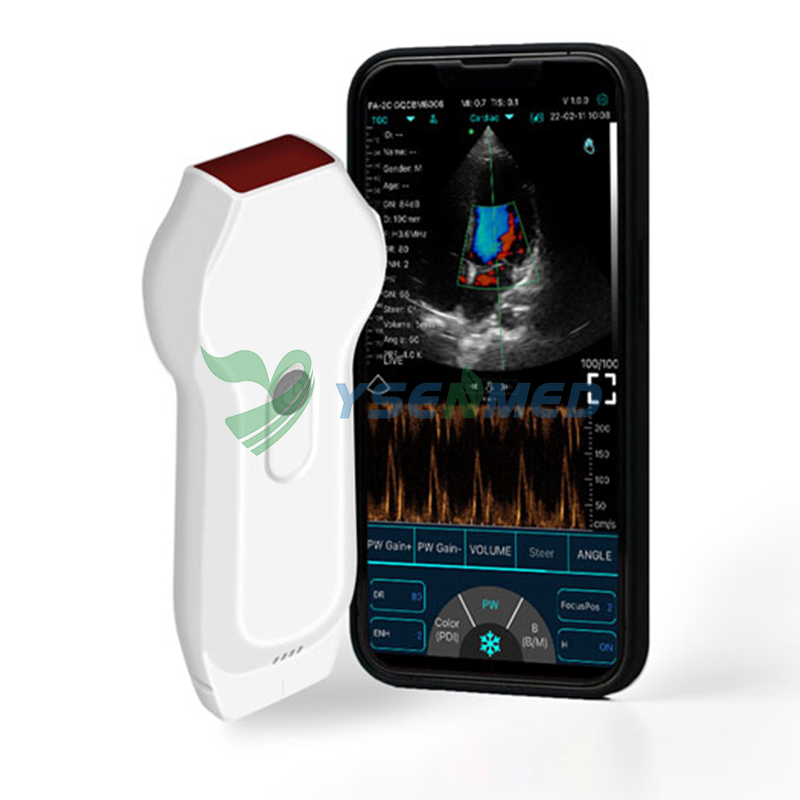

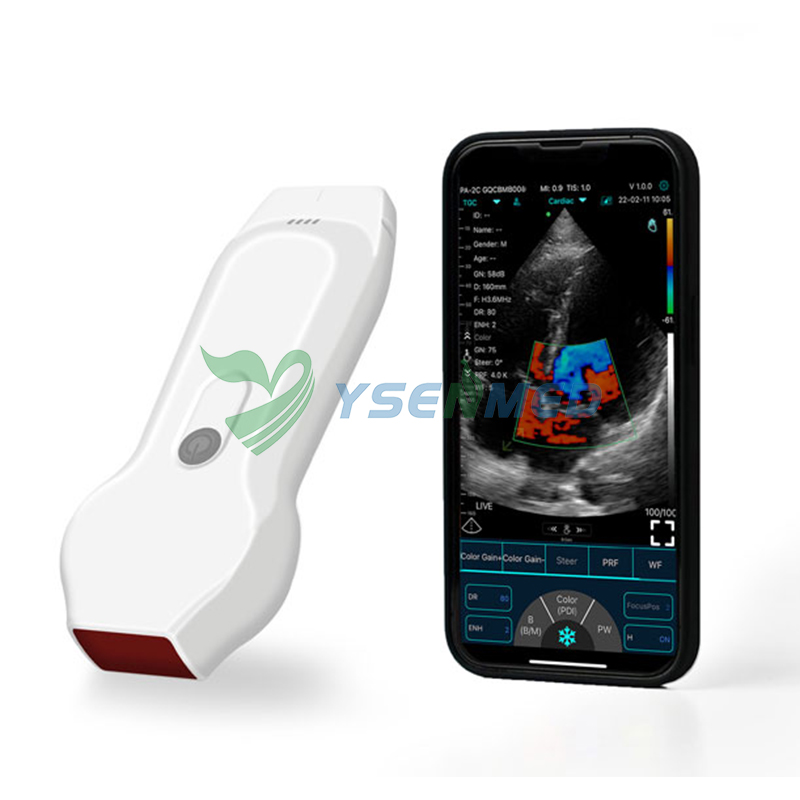

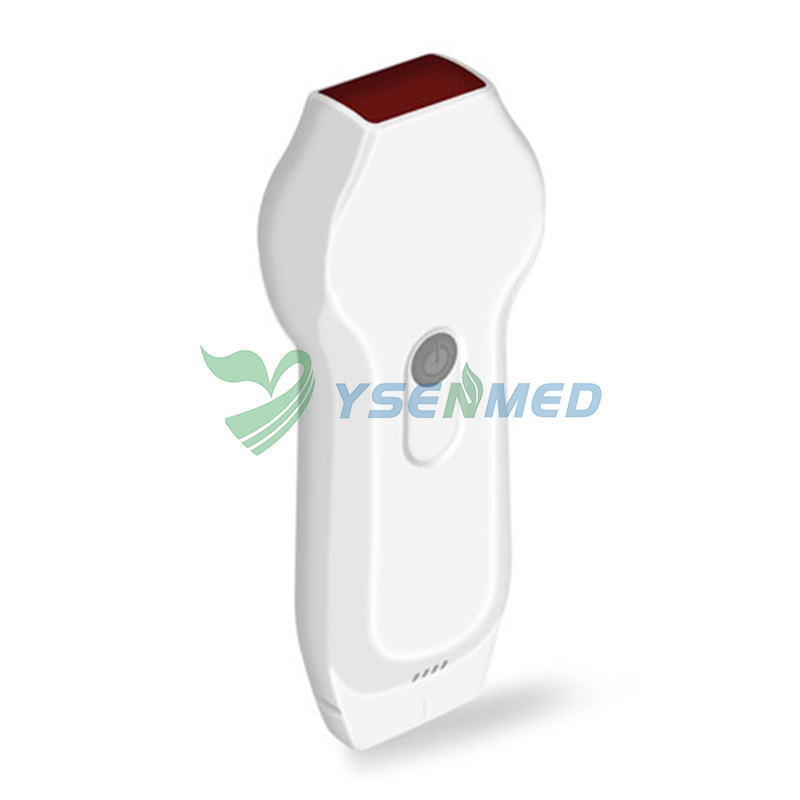

    Dual-Probes Multipurpose Ultrasound Phased+Linear Probe YSB-C10XL

    Mini wireless Cardiovascular ultrasound, multipurpose dual head linear+cardiac ultrasound probe can provide you with HD heart images. The YSB-C10XL, as a kind of WiFi ultrasound probe, is a combination of two probes, one side of the phased array probe and the other side of the line array probe.
    Specification
    Probe: Wireless dual head phased+linear probe
    Elements: Dual 128
    Frequency: 2.2-3.6mhz, 7.5/10mhz, 2.2-3.6mhz
    Depth: 90-160-200-240mm, 20-40-60-100mm,90-130-160-200mm
    Presets: Abdomen, Cardiac, User1, User2
    Thyroid, Small parts, Pediatrics, Vascular, Carotid, Breast, Msk, Nerve,
    Aesthetics, Vessel Flow, User1, User2
    Host: Tablet, Smart phone, PC
    Connection: WiFi*USB
    Software Adjustable Parameters: GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right/up/down
    Measurement:
    B: Length, Area/Circumference, Angle, Trace, Distance
    B+M: Heart Rate, Time, LVIDd, LVIDs, SV, EF, Distance
    B+PW: Velocity, Heart Rate(2), S/D, Depth
    Auto vessel flow measure: PS, ED, TAMAX, TAMEAN, PI, RI, S/D, Diam, Flow
    Playback Frames: 100, 200, 500, 1000 optional
    Display Mode: B, B/M, color, PW, PDI
    Image Save: jpg, avi, Mp4 and DICOM format
    Image Gray Scale: 256 level
    WiFi Type: Built-in WiFi, 802.11g/20MHz/2.4G/5G/450Mbps
    Channel: 32
    Frame: 24s/f
    Gain: 40-110Db
    Language: Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil)
    Power: by built-in battery
    Power Consumption: 4W (probe run) /1.5W (probe stop)
    Battery Replaceable: Yes
