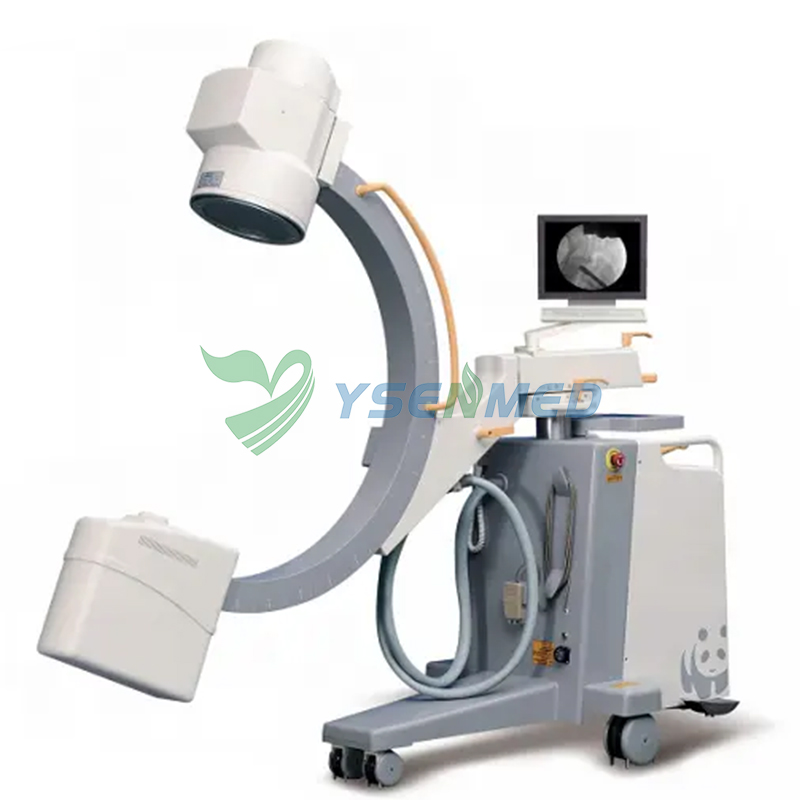

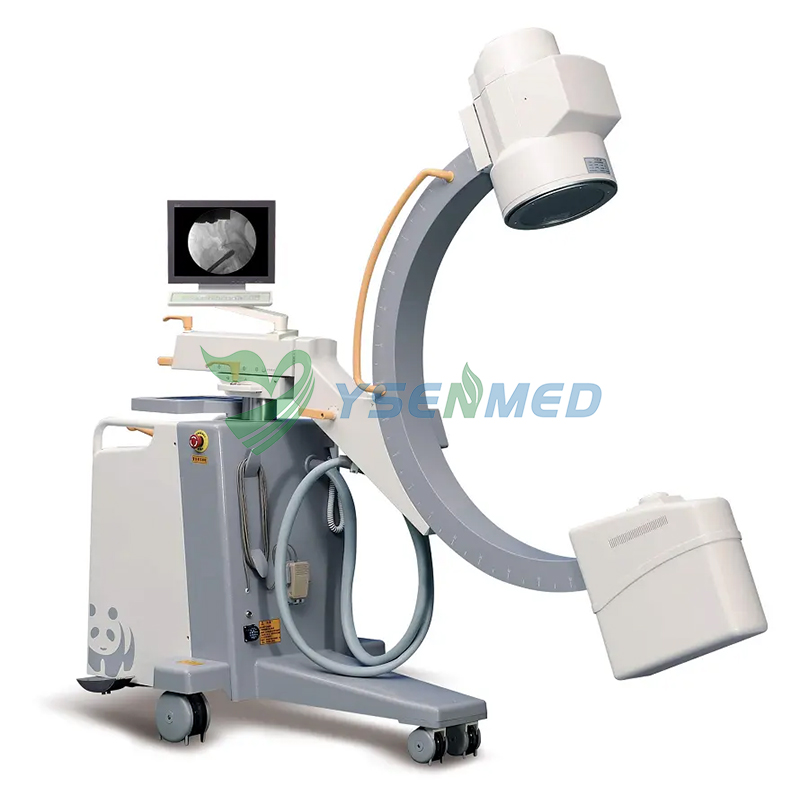

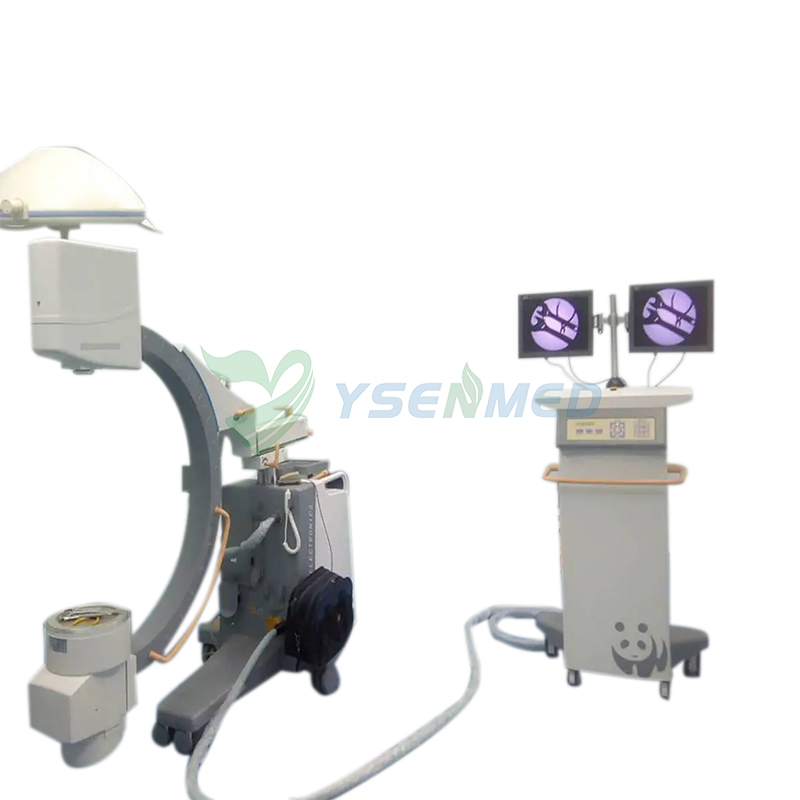

YSX-C50B 5kW High Frequency C-arm X-ray System
Specifications
YSX-C50B
HF generator 120KV, 5kW, 40kHz
Fluoroscopy mode Fluoroscopy mode40~120kv0.5~5mA
(KV manual and automatic);
Pulsd fluoroscopy 40~120kv 0,5-5mA
Boost fluoroscopy 40~120kV 5~10mA;
Photography 40~120kV 1~250mAs
X ray tube Dual-focus fixed anode:0.3mm/0.6mm
Image intensifier Three fields of vision 9, 6, 4.5 French Thales Brand
CCD camera 1 million pixel, Japanese Watt Brand, 360° rotation
Image system Recursive Noise Reduction
Frame freezing
Multi frame image storage
Image conversing and rotating
Screen display with image comparison

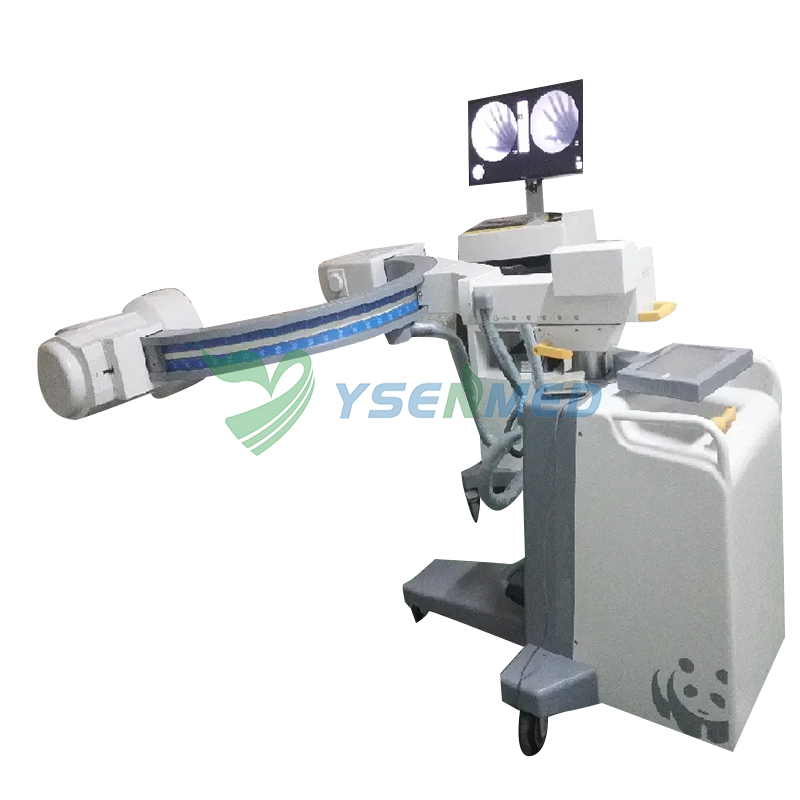

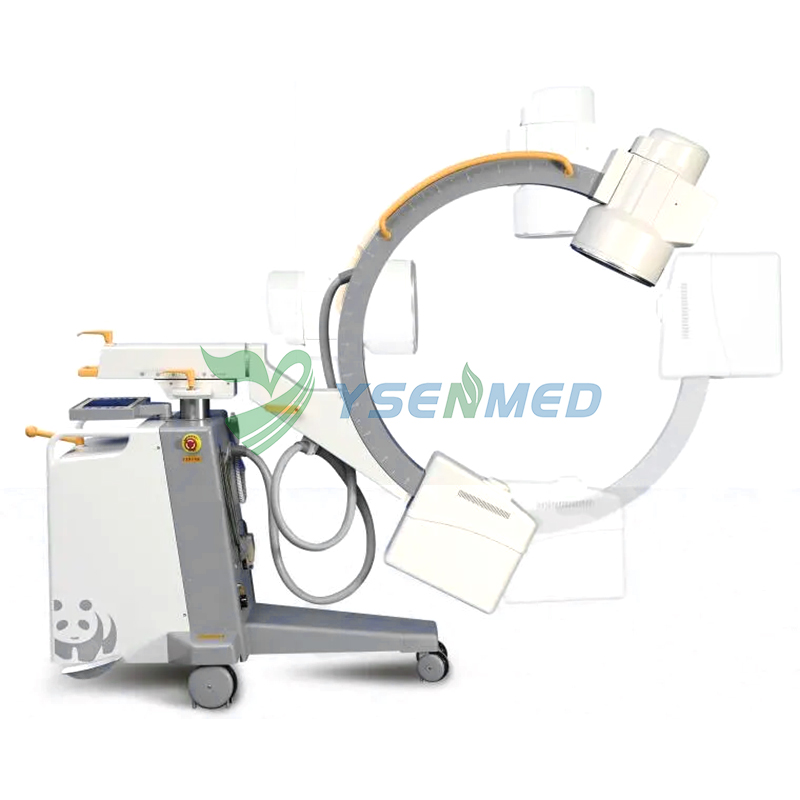

Mechanical motion specifications Verticaltravel:0-400mm Horizontaltravel:0~200mm Rotation about horizontal axis:±180°
C-arm dimension Distance of focal spot to image generator(SID):1000mm
Depth in arm≥650mm Mobile stand :1800mm*800mm*1850mm
Image system: 750mm*530mm*1680mm
Standard configuration High resolution CCD camera:1set
x-ray generator:1set
9” image intensifier:1set
image processor
23'' LCD high definition display 1 set
Mobile stand :1 set
Features
1. With HF & HV generator, inverter, and high quality image intensifier, the x ray generator works stably. It also reduces harm to the doctors through radiation.
2. 10.4"LCD friendly interface control board: easy operation and can be rotated to 180° (L90°,R90°). Compared with ordinary key board, our LCD display is not easy to be oxidized, besides, the error will be displayed the screen, which will improve the efficiency of fault diagnosis.
3. Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis.
4. With a steering handle, it can adjust the direction quickly when moving. And parallel movement function is also available.
5. Equipped with unique block line wheels, it can avoid accident when the machine moves.
6. Large free space in arc: the space can reach 800mm ,which is convenient for operation.
7. 9"/6"/4.5" three fields of vision: it facilitates diagnosis of partial enlargement.
8. CCD camera with rotation function:range of camera rotation:360°.
9. Original Korean linear slide rail can make the the movement of the machine flexibly.
