Multifunctional dynamic DR

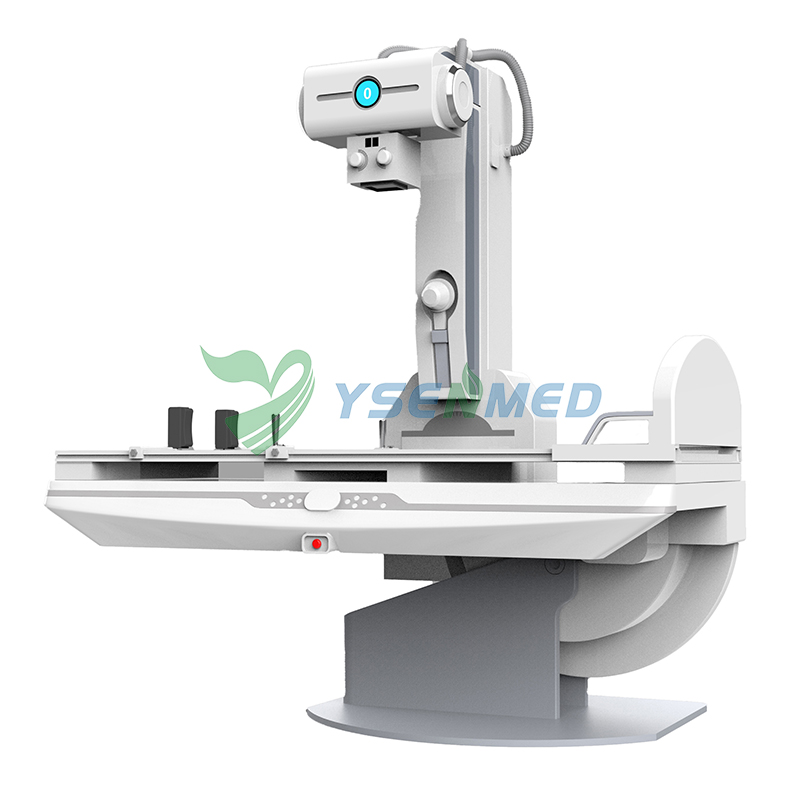

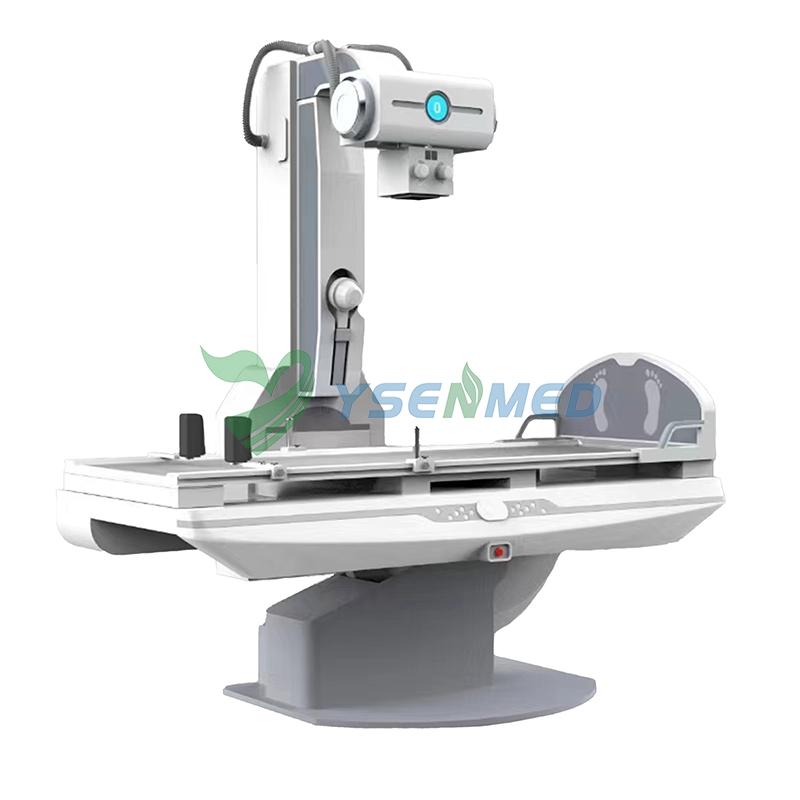

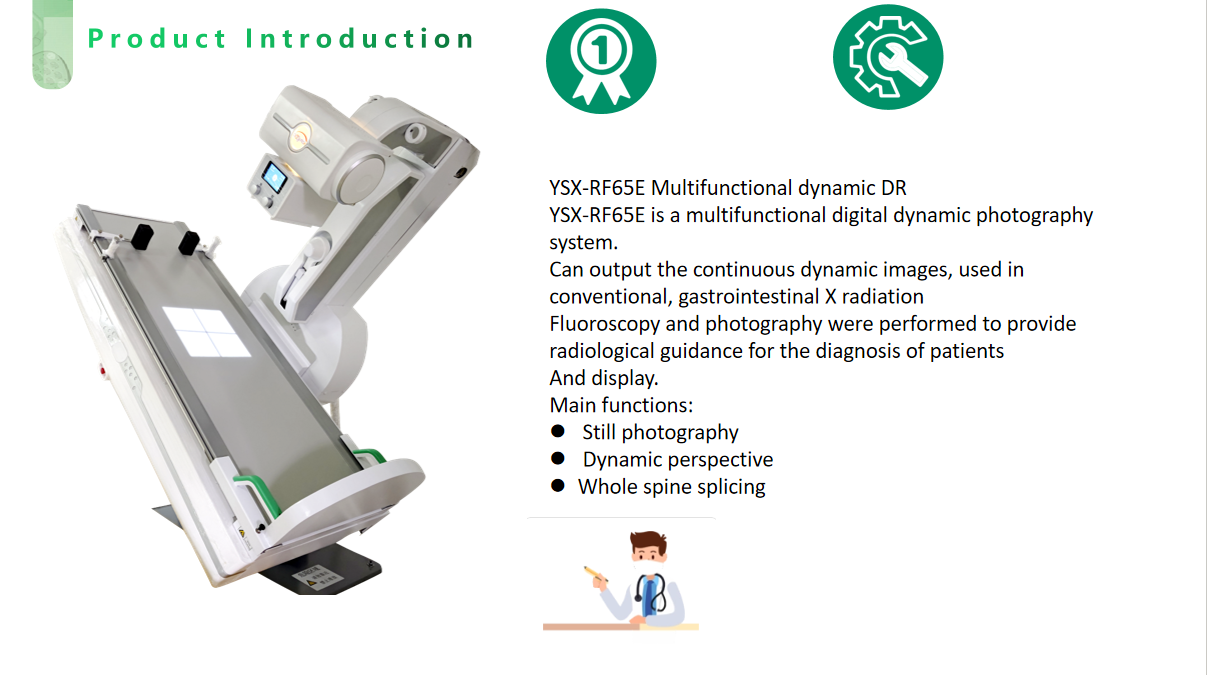

YSX-RF65E Multifunctional dynamic DR

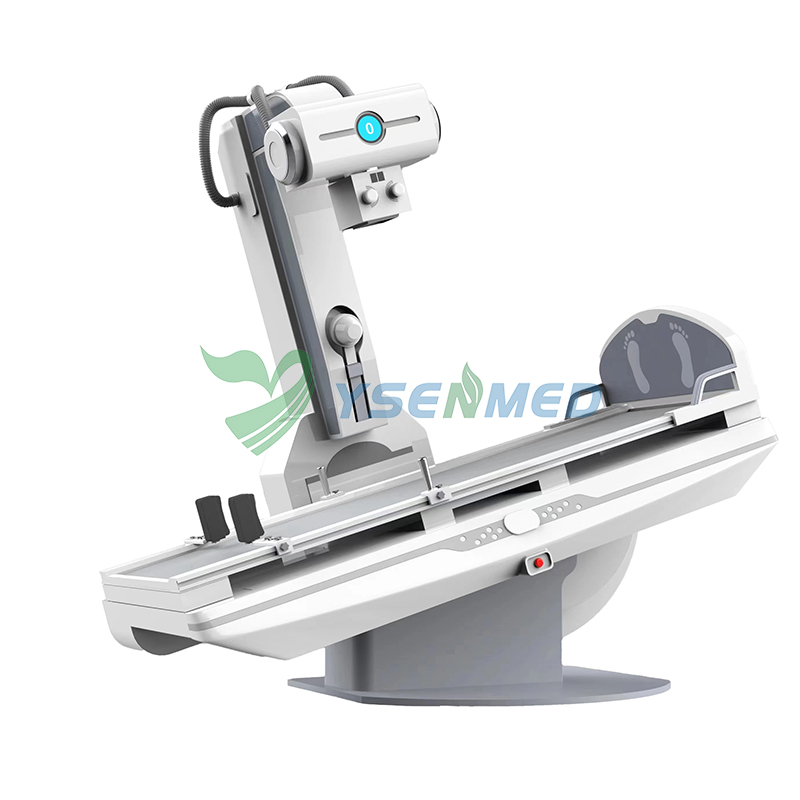

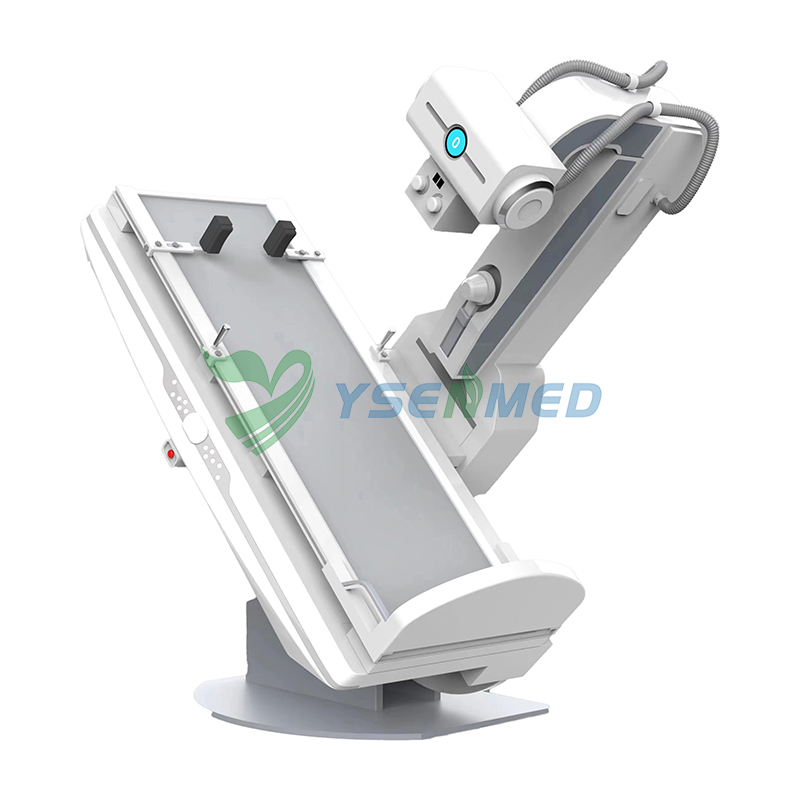

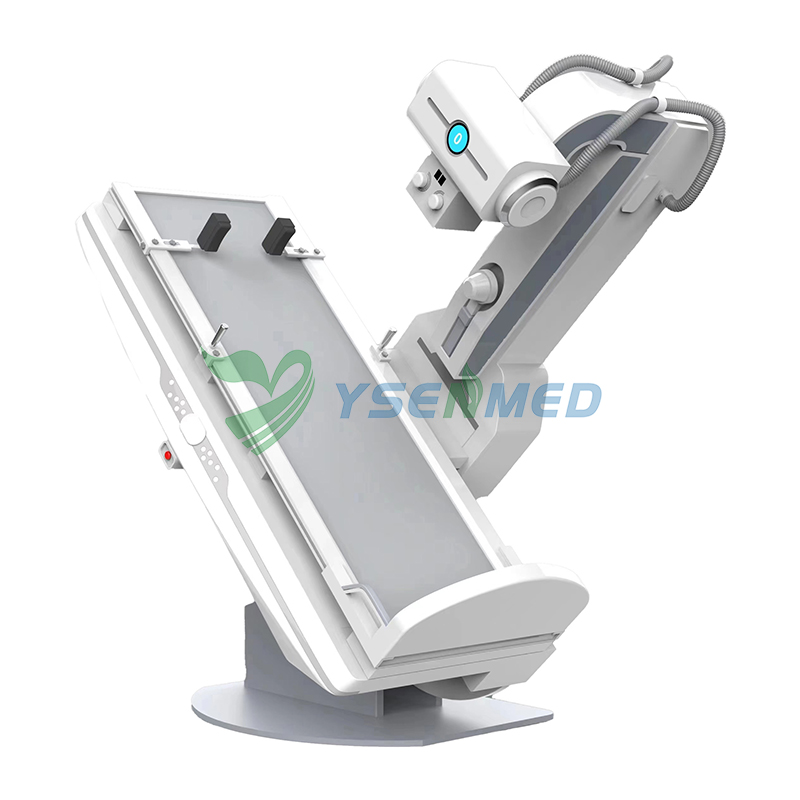

YSX-RF65E is a multifunctional digital dynamic photography system.
Can output the continuous dynamic images, used in conventional, gastrointestinal X radiation
Fluoroscopy and photography were performed to provide radiological guidance for the diagnosis of patients
And display.
Main functions:
Still photography
Dynamic perspective

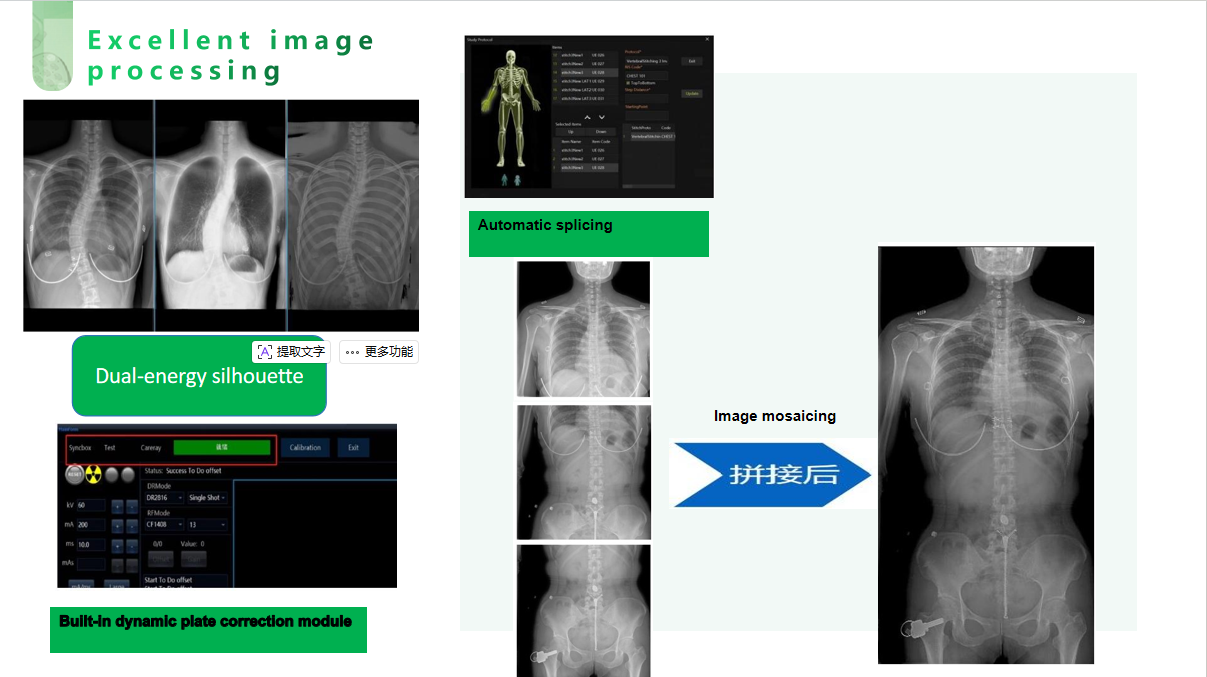

Whole spine splicing

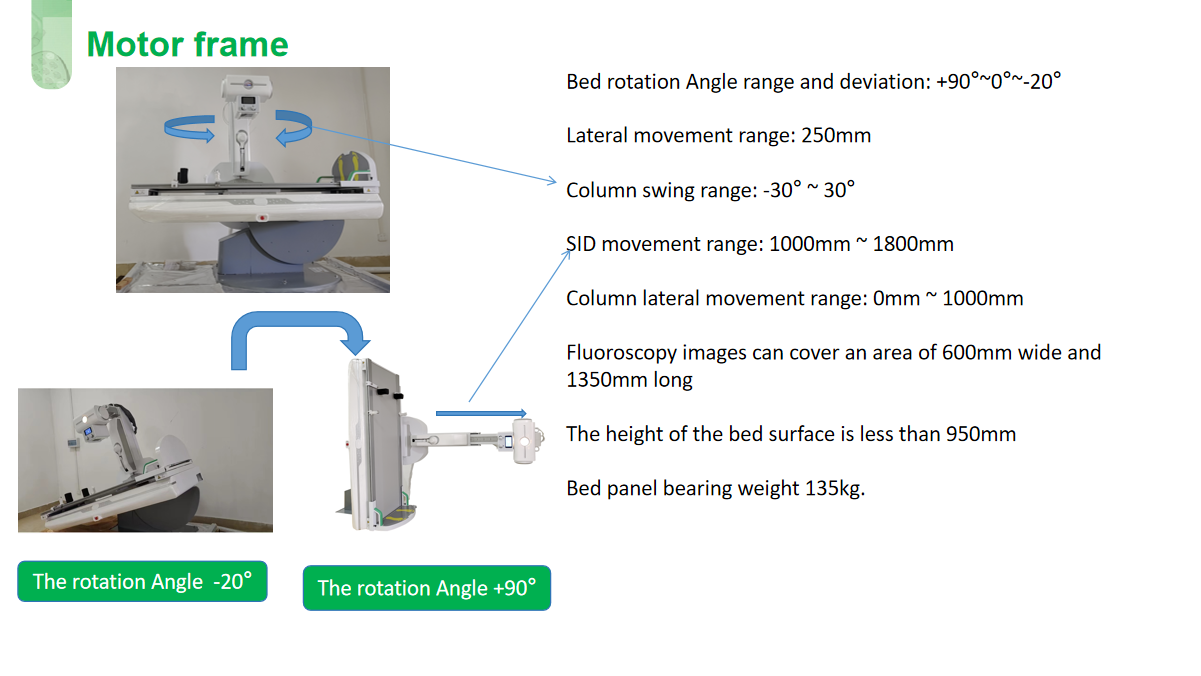

Bed rotation Angle range and deviation: +90°~0°~-20°
Lateral movement range: 250mm
Column swing range: -30° ~ 30°
SID movement range: 1000mm ~ 1800mm

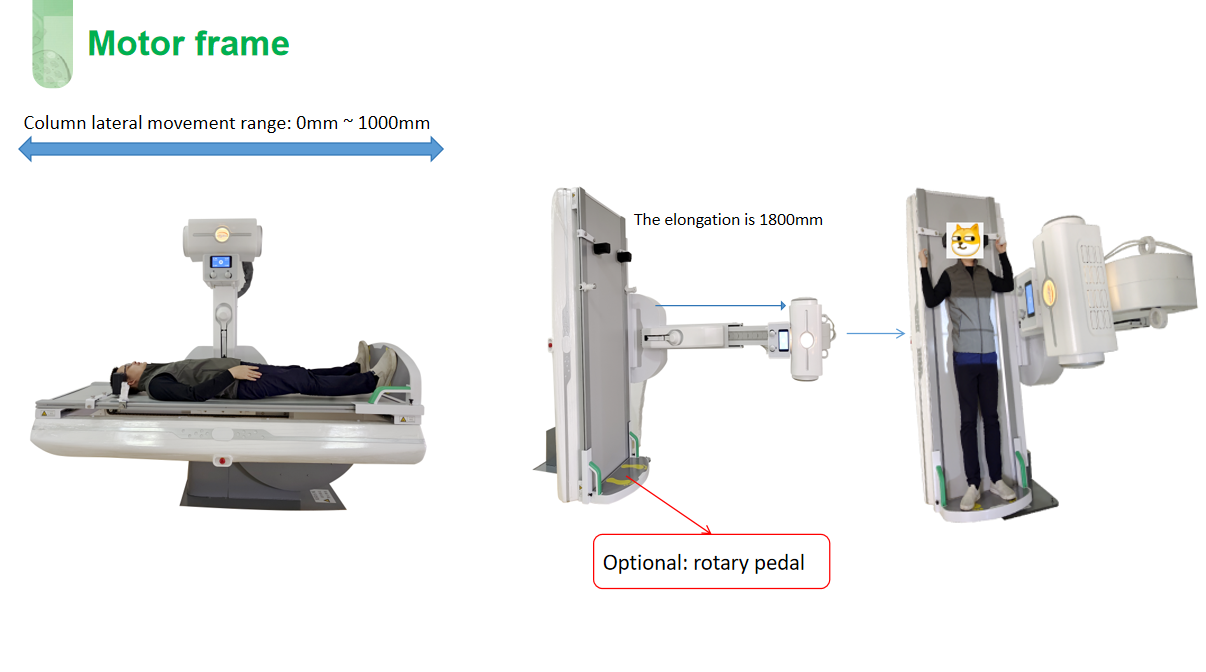

Column lateral movement range: 0mm ~ 1000mm
Fluoroscopy images can cover an area of 600mm wide and 1350mm long
The height of the bed surface is less than 950mm
Bed panel bearing weight 135kg.
