YSENMED 50kW UC-arm digital x-ray system YSX-uDR50Y

Model: YSX-uDR50Y
  • ModelYSX-uDR50Y
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou,China
  • ShippingAir/Sea
  • -
    +
    Categories:C-arm X-ray Machine
    Share:
    Description Get Price Review

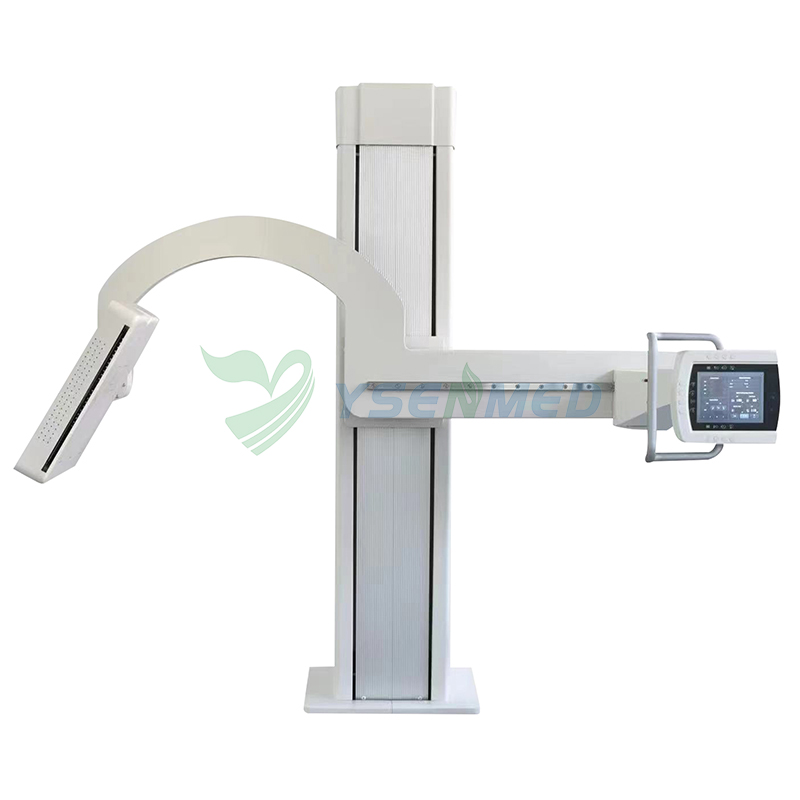

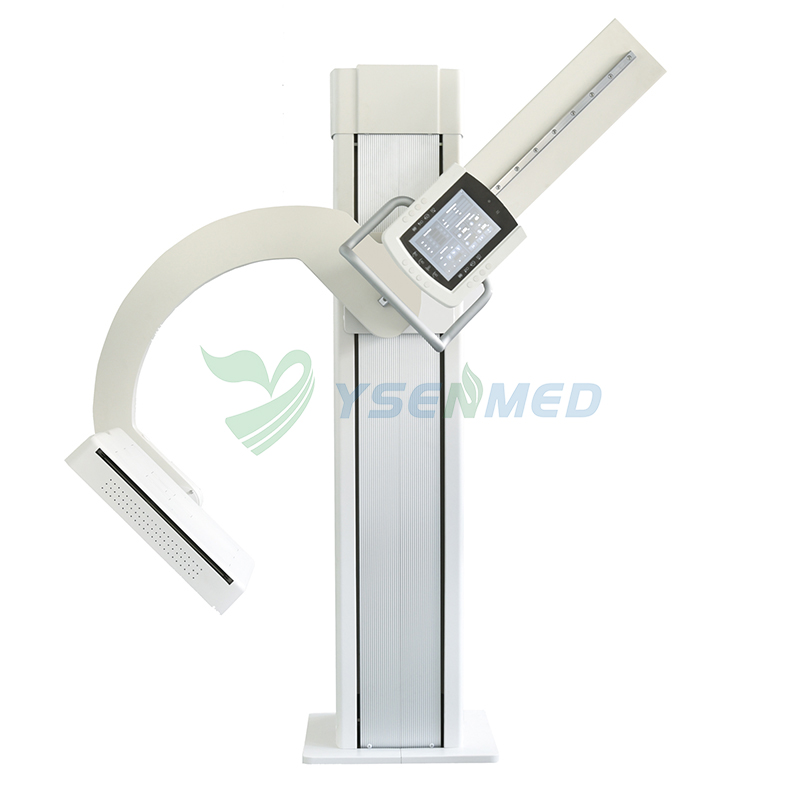

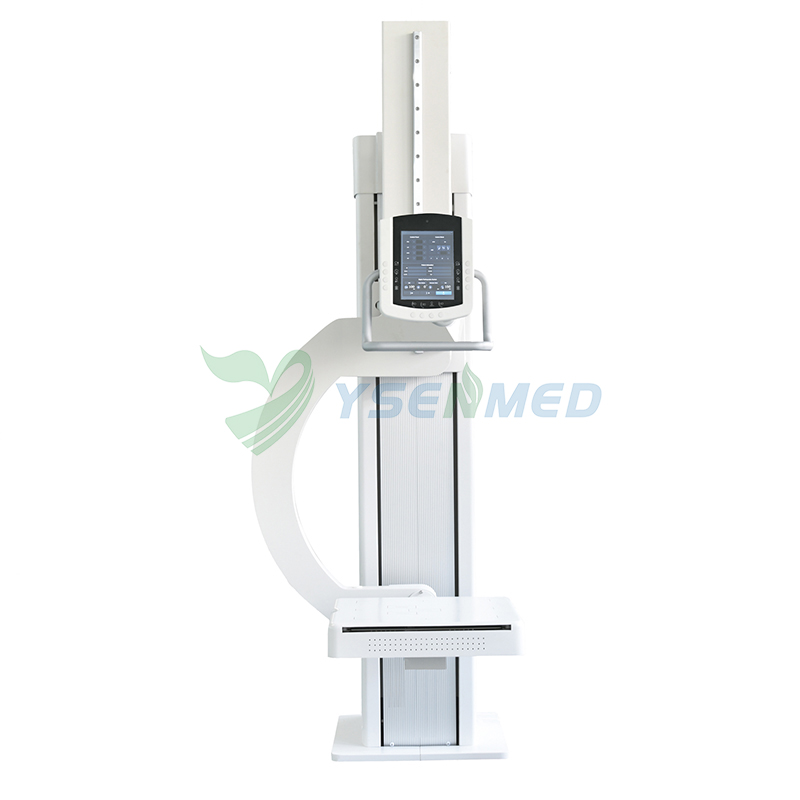

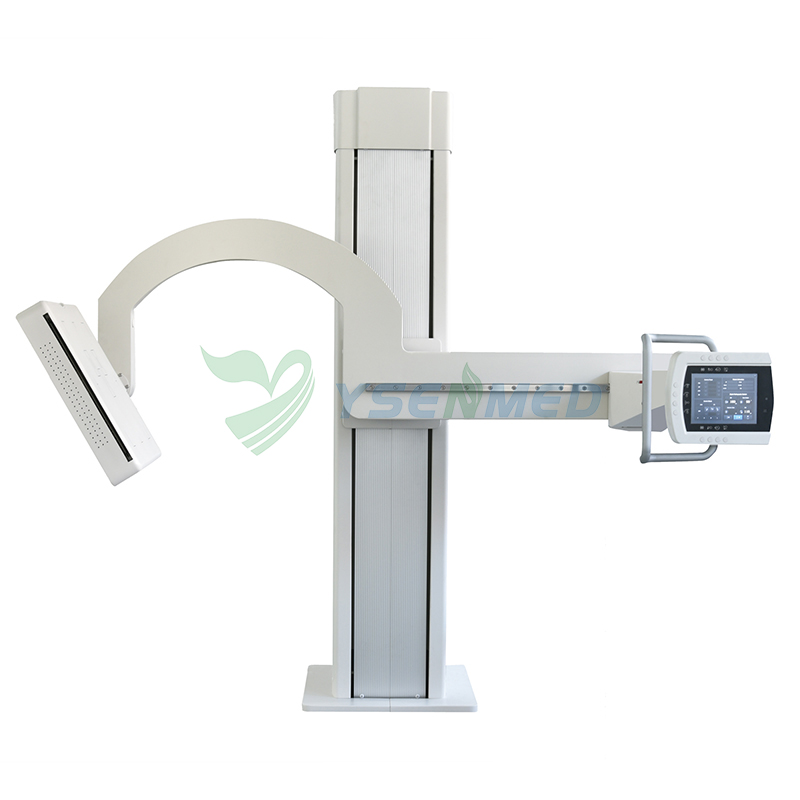

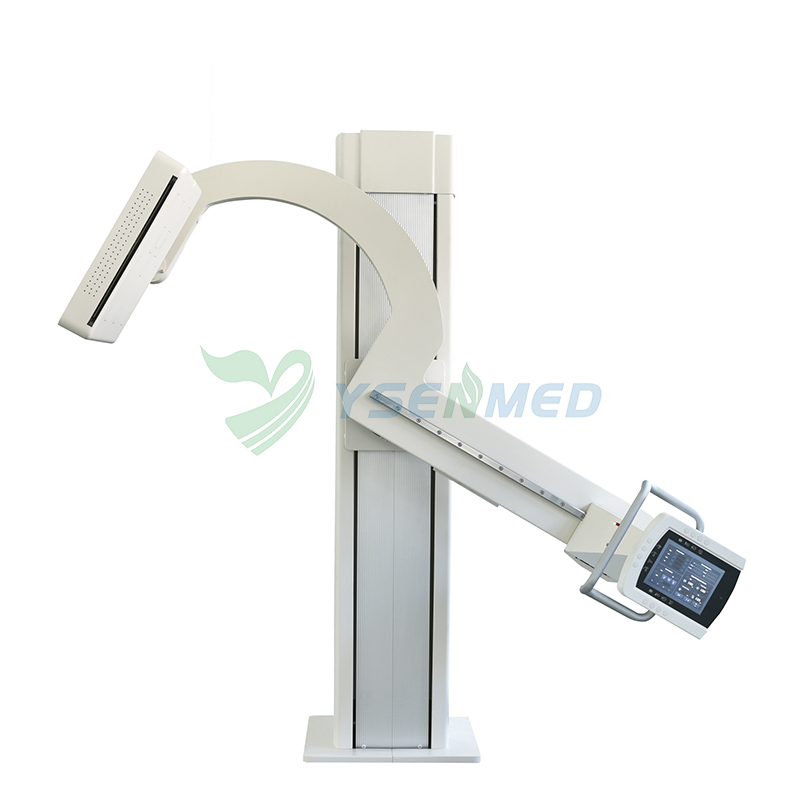

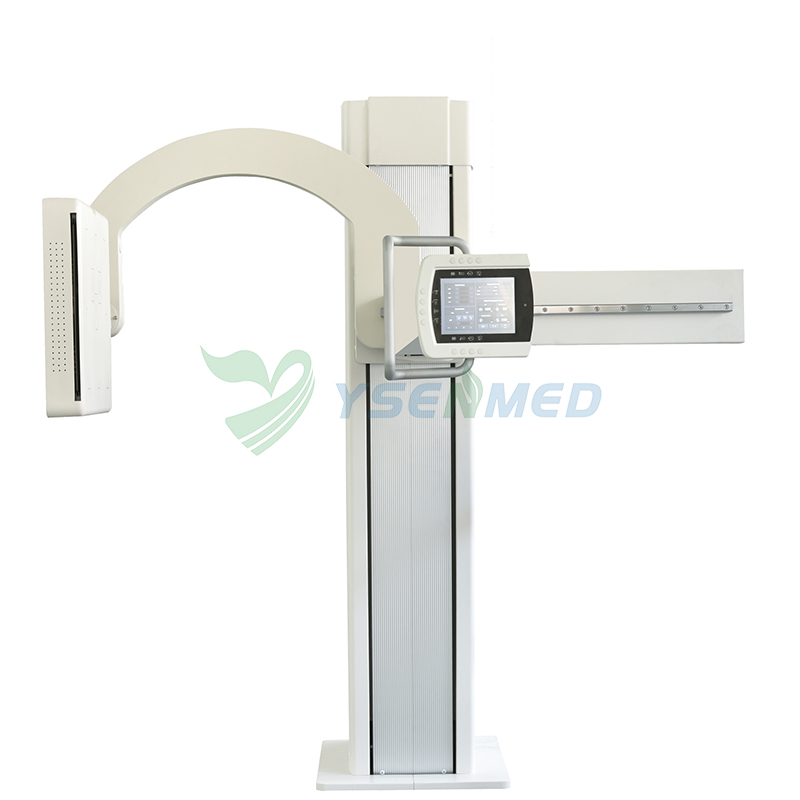

    YSENMED 50kW UC-arm digital x-ray system
    Model:YSX-uDR50Y

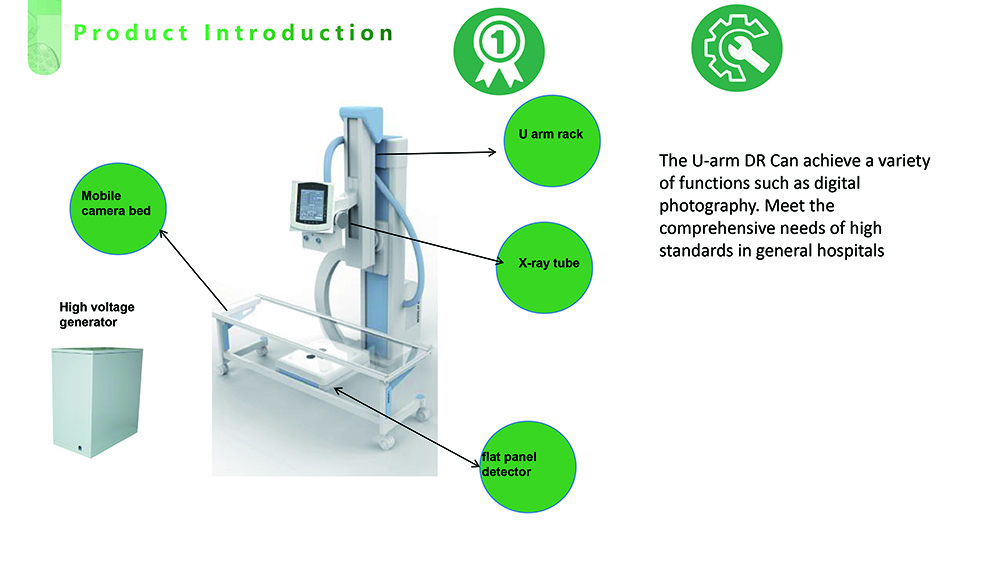

    The U-arm DR Can achieve a variety of functions such as digital photography. Meet the comprehensive needs of high standards in general hospitals.

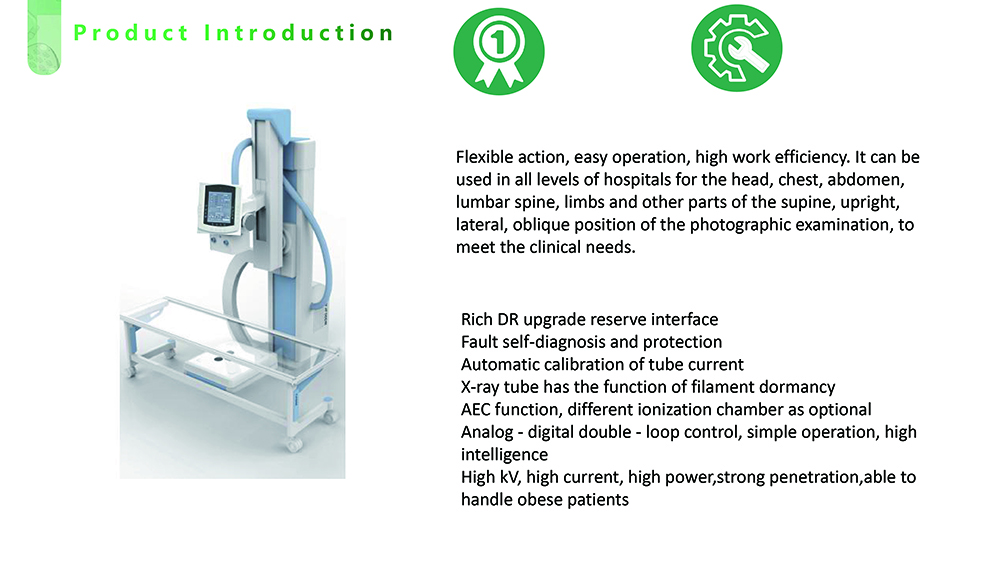

    Features
    Rich DR upgrade reserve interface
    Fault self-diagnosis and protection
    Automatic calibration of tube current
    X-ray tube has the function of filament dormancy
    AEC function, different ionization chamber as optional
    Analog-digital double -loop control, simple operation, high intelligence
    High kV, high current, high power, strong penetration, able to handle obese patients

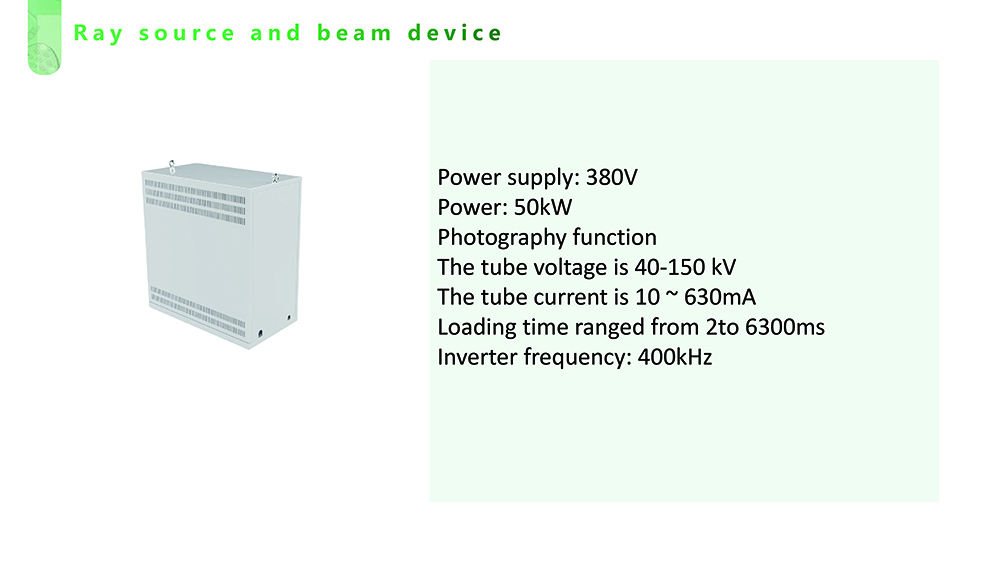

    Ray source and beam device
    Power supply: 380V
    Power: 50kW
    Photography function
    The tube voltage is 40-150 kV
    The tube current is 10~630mA
    Loading time ranged from 2 to 6300ms
    Inverter frequency: 400kHz
    tion field: Max 31x3 Nominal tube voltage: 125kV
    Dual focus:0.6mm(small focus)/1.2mm(large focus)
    Power:20kw/50kW
    Anode heat capacity:(300KHU)

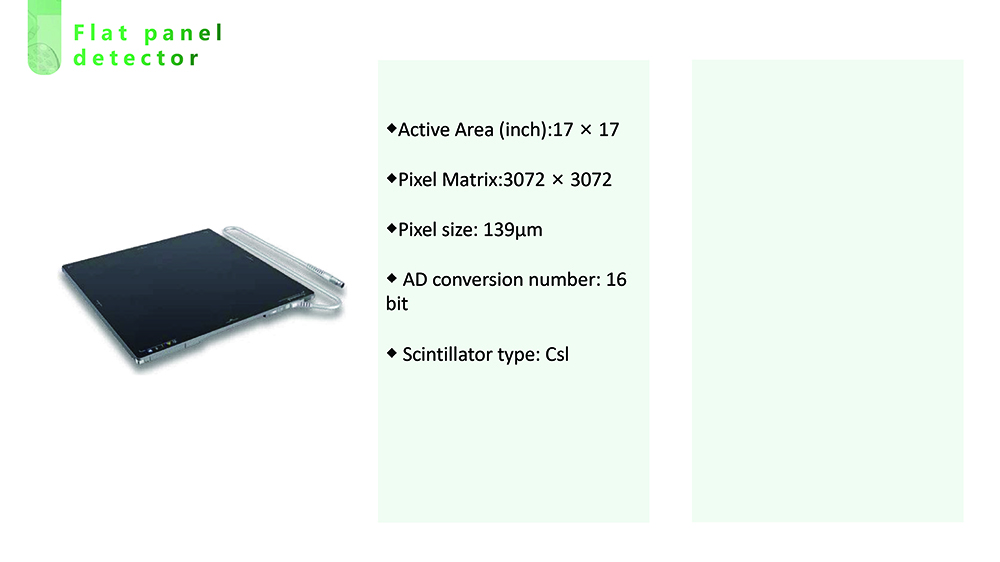

    Flat panel detector
    Active Area (inch):17 x 17
    Pixel Matrix:3072 x 3072
    Pixel size:139um
    AD conversion number: 16bit
    Scintillator type: Csl
