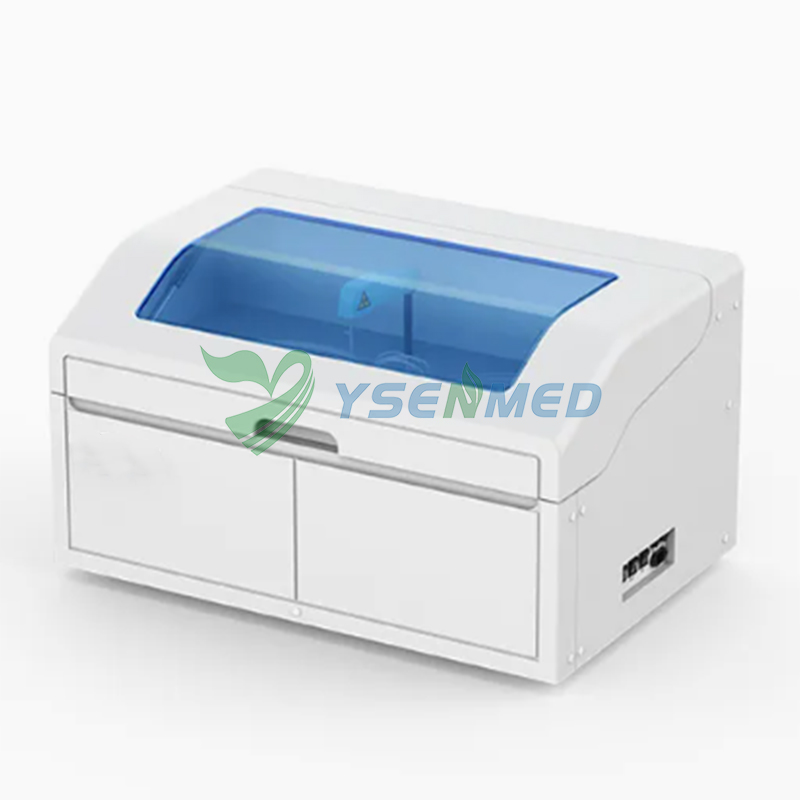

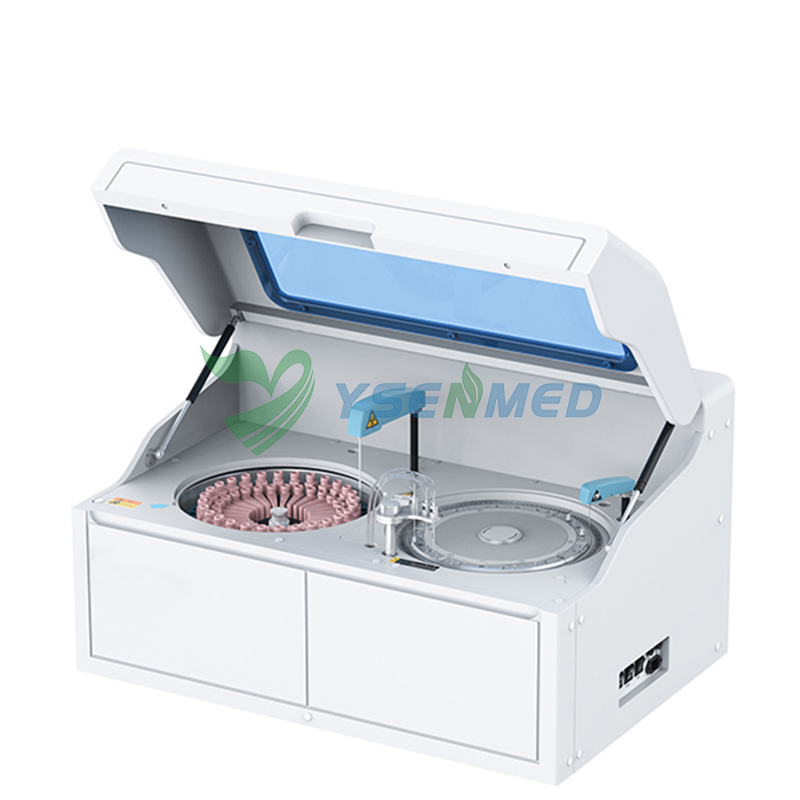

300T/H Automatic Chemistry Analyzer
Model:YSTE310K
Introduction
The 300T/H Automatic Chemistry Analyzer is a state-of-the-art diagnostic tool designed for high-efficiency biochemical analysis. This advanced instrument boasts an impressive array of features tailored to meet the demands of modern laboratories.

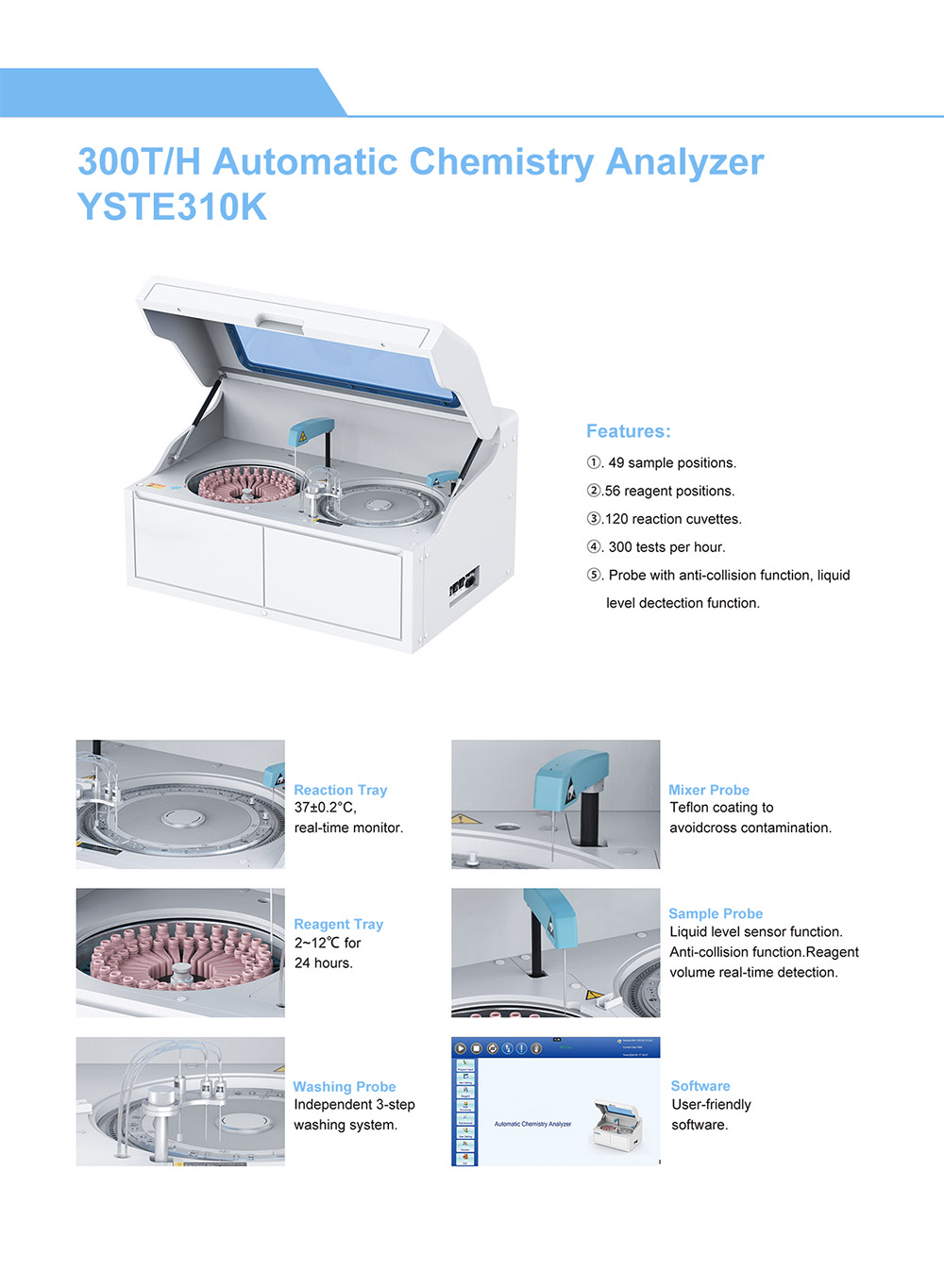

Features
49 sample positions.
56 reagent positions.
120 reaction cuvettes.
300 tests per hour.
Probe with anti-collision function, liquid level detection function.

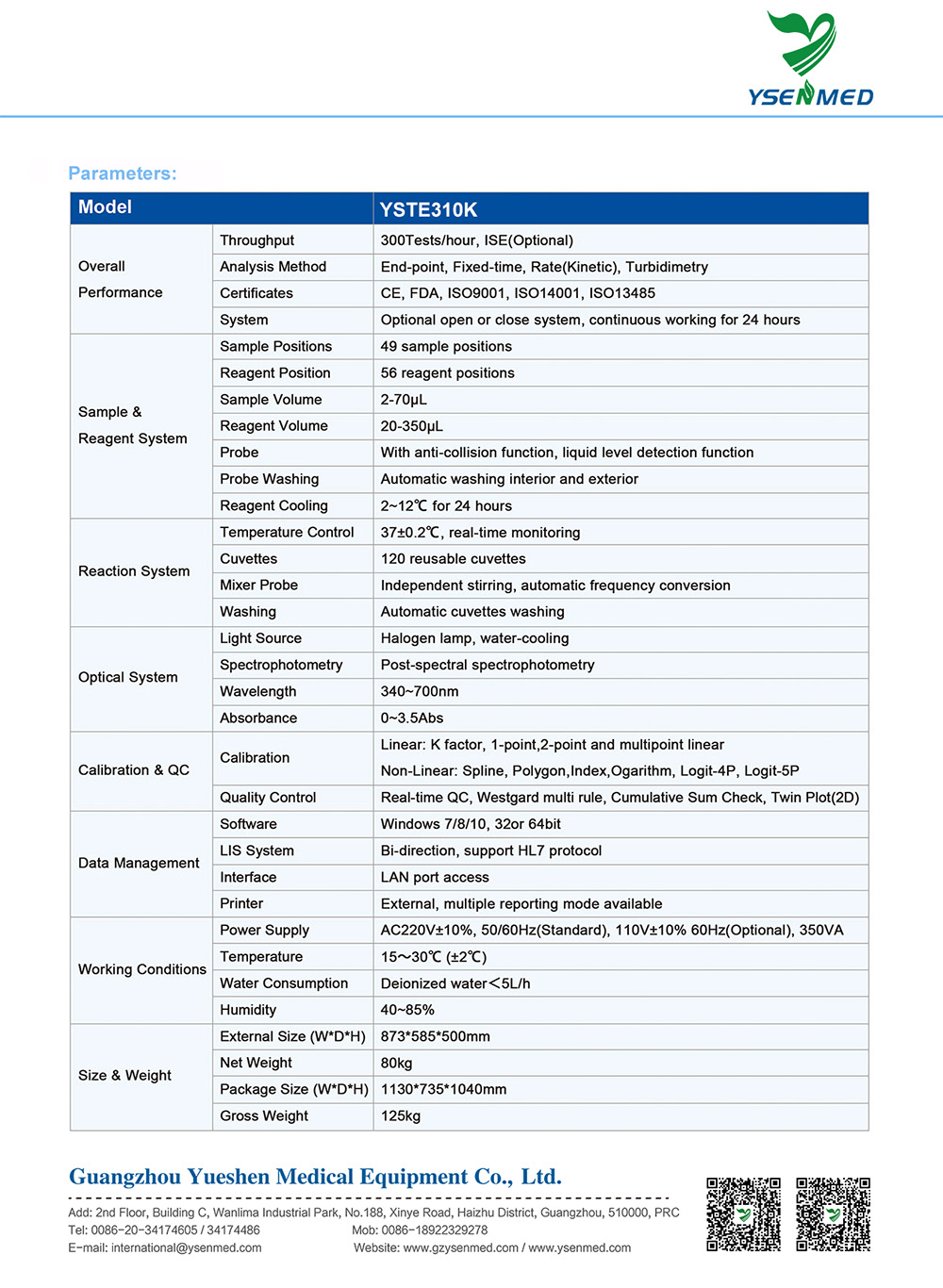

Parameters
Model YSTE310K
Overall
Performance Throughput 300Tests/hour, ISE(Optional)
Analysis Method End-point, Fixed-time, Rate(Kinetic), Turbidimetry
Certificates CE, FDA, ISO9001, ISO14001,1SO13485
System Optional open or close system, continuous working for 24 hours
Sample &
Reagent System Sample Positions 49 sample positions
Reagent Position 56 reagent positions
Sample Volume 2-70μL
Reagent Volume 20-350μL
Probe With anti-collision function, liquid level detection function
Probe Washing Automatic washing interior and exterior
Reagent Cooling 2~12°C for 24 hours
Reaction System Temperature Control 37±0.2°C, real-time monitoring
Cuvettes 120 reusable cuvettes
Mixer Probe Independent stirring, automatic frequency conversion
Washing Automatic cuvettes washing
Optical System Light Source Halogen lamp, water-cooling
Spectrophotometry Post-spectral spectrophotometry
Wavelength 340~700nm
Absorbance 0~3.5Abs
Calibration & QC Calibration Linear:K factor, 1-point,2-point and multipoint linear
Non-Linear: Spline, Polygon, index, Ogarithm, Logit-4P, Logit-5P
Quality Control Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot(2D)
Data Management Software Windows 7/8/10, 32or 64bit
LIS System Bi-direction, support HL7 protocol
Interface LAN port access
Printer External, multiple reporting mode available
Working Conditions Power supply AC220V±10%,50/60Hz(Standard),110V±10% 60Hz(Optional),350VA
Temperature 15~30°C (+2°C)
Water Consumption Deionized water<5L/h
Humidity 40~85%
Size & Weight External Size (W*D*H) 873*585*500mm
Net Weight 80kg
Package Size (W*D*H) 1130*735*1040mm
