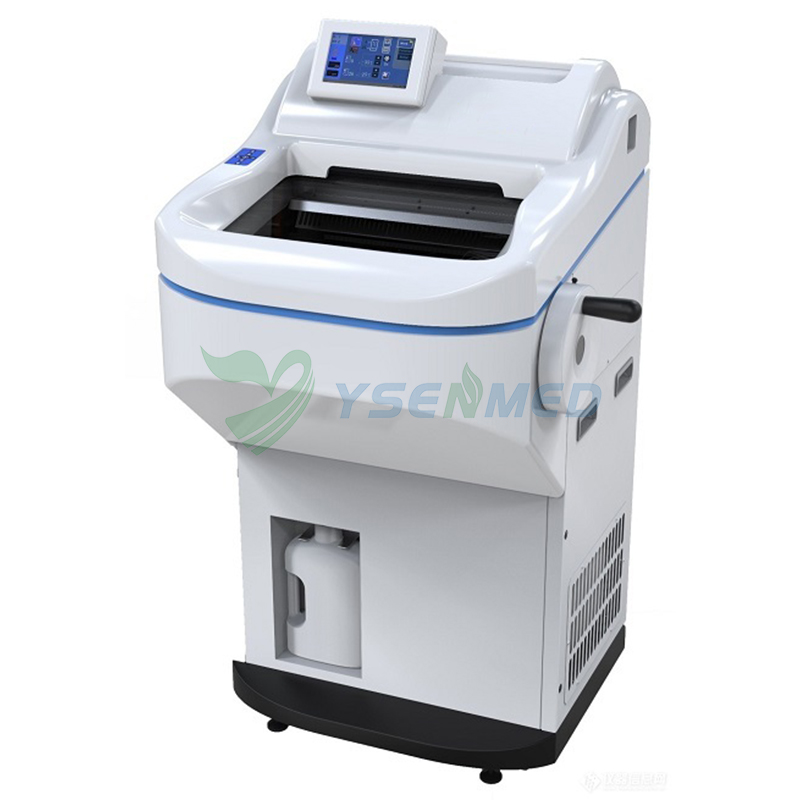

Semi-automatic Cryostat YSPD-HS4000

Model: YSPD-HS4000
  • ModelYSPD-HS4000
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou,China
  • ShippingAny shipping terms convenient for customers
  • -
    +
    Categories:Microtome
    Share:
    Description Get Price Review
    Semi-automatic Cryostat


    Specification:
    Model Number : YSPD-HS4000
    Short Desc : Semi-automatic Cryostat
    Setting range of section thickness :0 um - 100 um
    "Freezing chamber
    The range of temperature setting : ﹣35 ℃ to 40℃ adjustable
    Defrost : Manual / Auto
    Refrigerating capacity : 690 W
    Refrigerate :R449A/400g±5g"
    "Quick -freezing shelf
    Minimum temperature :﹣40 ℃
    Number of specimen holder freezing points : 18
    Number of semi-conductor freezing points : (switchable) 2"
    Vertical specimen stroke : 59mm±0.5mm
    Specimen’s horizontal stroke : 25mm±1mm
    "Specimen’s max size : 55 mm X 55 mm
    Specimen clamp ‘s max adjustable angle : 12°for X&Y axis, 360°for Z axis
    Sample slow forward and rewind speed : 300μm/s
     Sample fast forward and rewind speed:900μm/s"
    Size without packaging (Including hand wheel):780×700×1280 mm
    Empty weight, without packaging:140kg
    Features:
    © Defrost automatically / manually ;Hibernation automatically / manually ,wake up in 15 minutes ;UV sterilization ;Semi-conductor refrigerant ;Slice number and thickness calculation ;2 movement speeds of specimen clamp.
    © one-time injected model cover ;Anti-fog heating glass design ;Chromatic liquid crystal touch screen .
    "© Microtome :
    light and smooth handwheel with locking device on it ;Specimen clamp enables to adjust triaxially with a block in the centre to go back High precision guide rails made in Germany make transmission smooth durable and be able to cut hard sample ;Retraction Freezing chamber; Extra large chamber with wide freezing shelf may hold 20 specimen discs meanwhile .With waste tray and instrument rack ."
    "© Blade holder :
    Wide or narrow blades optional ;A anti-fatigue cam lock ensures blades clamp tight;Blade clamp can be moved horizontally on the guide rail for safety and making full use of a blade ;Glass anti rolling plate to adjust angle and gap with pressing plate ;A pushing rod pops the blade out ."
    "© Electrical :
    Security type:  l category ,B type ;Voltage frequency :AC 220V , 50Hz (±10% )  Or AC 110V , 60Hz (±10% );Input power :650 VA  "
    Packing Information:
    Weight : 170kg Dimension(mm) : 785×785×1336mm
    Packing : In wooden case
